Product Details:
|
| Panel Size :: | 11.6 Inch | Resolution :: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Active Area :: | 256.125×144 Mm | Outline :: | 278×167×3.6 Mm |
| Surface :: | Glare (Haze 0%) | Brightness :: | 200 Cd/m² (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

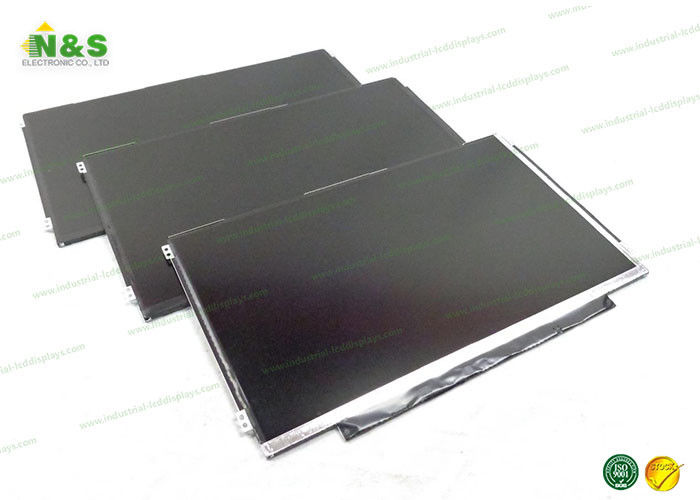

11.6 inch M116NWR1 R4 IVO 262K Normally White WLED LVDS 60Hz
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
M116NWR1 R4 Information
| Panel Size : | 11.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 135 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch : | 0.1875×0.1875 mm (H×V) |
| Weight : | 235g (Max.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 256.125×144 mm (H×V) |
| Bezel Area : | 259.675×147.2 mm (H×V) |
| Outline Dimension : | 278×167 mm (H×V) |
| Outline Depth : | 3.6 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 3.5/6.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable : | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C116NWR5-0 | IVO | 11.6" | 1366×768 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| C054SWN1-2 | IVO | 5.4" | 540×960 |
