Product Details:
|
| Response Time: | 40 (Max.)(Tr) | Input Voltage: | 12.0V (Typ.) |
|---|---|---|---|
| Outline: | 330×255×20 Mm | Surface: | Antireflection |
| Resolution: | 1024(RGB)×768 , XGA | Signal Interface: | Analog RGB , 31 Pins |
| Viewing Angle: | 50/50/15/30 (Typ.)(CR≥10) (L/R/U/D) | Outline Depth: | 19.0/20.0 (Typ./Max.) Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||

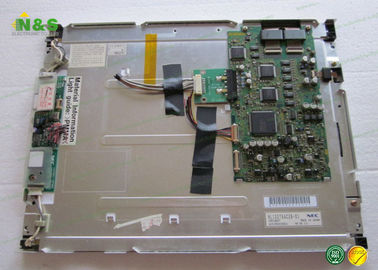

NEC LCD Panel NL10276AC28-01 14.1 inch Landscape type
NEC LCD Panel NL10276AC28-01 Specification
| Panel Brand : | NEC |
| Panel Model : | NL10276AC28-01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 14.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 285.696×214.272 mm |
| Outline : | 330×255×20 mm |
| Surface : | Antireflection |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | Full color , CIE1931 35% |
| Response Time : | 40 (Max.)(Tr) |
| Viewing Angle : | 50/50/15/30 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 31 pins |
| Input Voltage : | 12.0V (Typ.) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Below are our other LCD panels stock for your easy reference:
| BRAND | P/N | size | quantity |
| NEC | NL6448BC33-64D | 10.4" | 60 |
| NEC | NL6448AC20-06 | 6.5" | 300 |
| NEC | NL3224BC35-20 | 5.5" | 200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 14.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.093×0.279 mm (H×V) |
| Pixel Pitch : | 0.279×0.279 mm (H×V) |
| Weight : | 1.22/1.25Kgs (Typ./Max.) |
| Surface : | Antireflection |
| Active Area : | 285.696×214.272 mm (H×V) |
| Bezel Area : | 290.4×219.0 mm (H×V) |
| Outline Dimension : | 330×255 mm (H×V) |
| Outline Depth : | 19.0/20.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
NEC LCD Panel NL10276AC28-01 14.1 inch Landscape type
