Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Active Area: | 245.76×184.32 Mm |
|---|---|---|---|
| Outline: | 290×225×17 Mm | Brightness: | 200 Cd/m² (Typ.) |
| Contrast Ratio: | 150:1 (Typ.) | Signal Interface: | Analog RGB , 31 Pins |
| High Light: | nec lcd touch screen,nec lcd screen |
||
12.1 inch Full color NL10276AC24-05 NEC LCD Panel with 290×225×17 mm Outline
NL10276AC24-05 NEC LCD Panel Information
| Panel Brand : | NEC |
| Panel Model : | NL10276AC24-05 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 245.76×184.32 mm |
| Outline : | 290×225×17 mm |
| Surface : | |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | Full color , CIE1931 40% |
| Response Time : | 40 (Max.)(Tr) |
| Viewing Angle : | 50/50/20/20 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 31 pins |
| Input Voltage : | 3.3/12V (Typ.)(VCC/VDD) |
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 0.97/1.00Kgs (Typ./Max.) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 252.8×188.8 mm (H×V) |
| Outline Dimension : | 290×225 mm (H×V) |
| Outline Depth : | 17.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| BRAND | P/N | size | quantity |
| NEC | NL6448BC33-64D | 10.4" | 60 |
| NEC | NL6448AC20-06 | 6.5" | 300 |
| NEC | NL3224BC35-20 | 5.5" | 200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

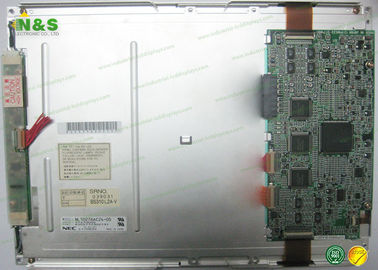

Picture of NL10276AC24-05 NEC LCD Panel
