Product Details:
|
| Display Mode: | IPS, Normally Black, Transmissive | Active Area: | 94.2×150.72 Mm |
|---|---|---|---|
| Display Colors: | 16.7M (8-bit) | Response Time: | 14/11 (Typ.)(Tr/Td) |
| Frequency: | 60Hz | Signal Interface: | MIPI (4 Data Lanes) , 36 Pins |
| High Light: | tft lcd display,lcd display panel |
||
7.0 Inch Normally Black Innolux LCD Panel N070ICE - GB1 for Pad / Tablet panel
N070ICE-GB1 Innolux LCD Panel Specification
| Panel Brand : | INNOLUX |
| Panel Model : | N070ICE-GB1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×1280 , WXGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 94.2×150.72 mm |
| Outline : | 105.62×163.27×3.95 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S6P WLED Without Driver |
| Signal Interface : | MIPI (4 data lanes) , 36 pins |
| Input Voltage : | 1.8/3.3V (Typ.)(VCC/VDD) |
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×1280 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 215 PPI |
| Aspect Ratio : | 10:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.03925×0.11775 mm (H×V) |
| Pixel Pitch : | 0.11775×0.11775 mm (H×V) |
| Weight : | 90g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 94.2×150.72 mm (H×V) |
| Bezel Area : | 97.35×153.82 mm (H×V) |
| Outline Dimension : | 105.62×163.27 mm (H×V) |
| Outline Depth : | 2.4/3.95 (Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| BRAND | P/N | size | quantity |
| Innolux | G104S1-L01 | 10.4" | 500 |
| Innolux | G150XGE-L05 | 15.0" | 500 |
| Innolux | G057VGE-T01 | 5.7" | 852 |
| Innolux | G070Y2-T02 | 7.0" | 2320 |
| Innolux | G070Y3-T01 | 7.0" | 1580 |
| Innolux | G104S1-L01 | 10.4" | 850 |
| Innolux | G141C1-L01 | 14.1" | 450 |
| Innolux | R190E6-L01 | 19.0" | 150 |
| Innolux | R196U2-L03 | 19.6" | 450 |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Packing & Delivery for our LCD Screen Panel Replacements:

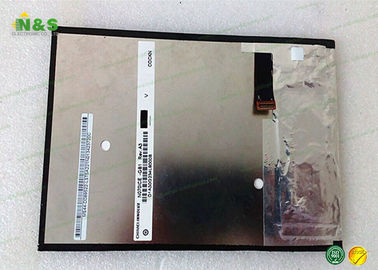

N070ICE-GB1 Innolux LCD Panel Picture
