N173HCE-E31 Innolux 17.3" LCM Laptop Innolux LCD Panel

N173HCE-E31 Innolux 17.3" LCM Laptop Innolux LCD Panel
N173HCE-E31 Innolux 17.3" LCM Laptop Innolux LCD Panel N173HCE-E31 Innolux 17.3" LCM Laptop Innolux LCD Panel

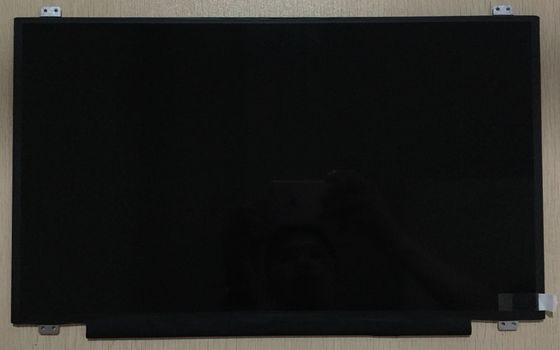

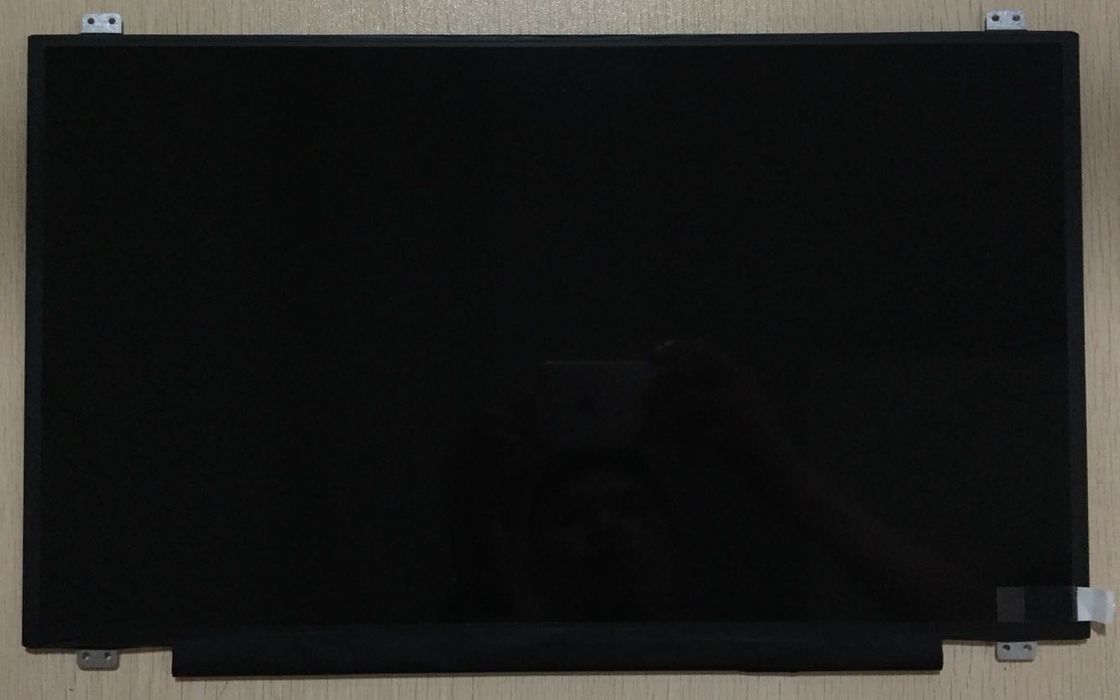

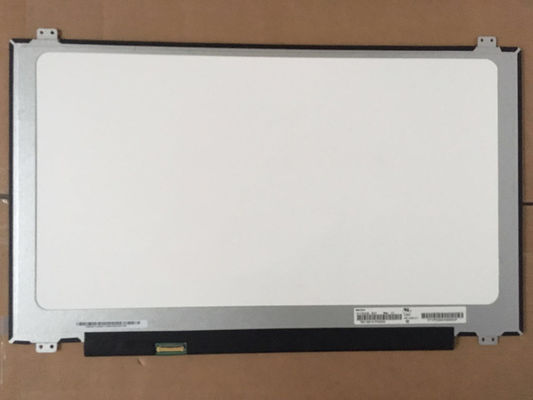

Large Image :  N173HCE-E31 Innolux 17.3" LCM Laptop Innolux LCD Panel

Product Details:
Place of Origin: KOREA
Brand Name: INNOLUX
Model Number: N173HCE-E31
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

N173HCE-E31 Innolux 17.3" LCM Laptop Innolux LCD Panel

Description
Panel Brand: Innolux Panel Model: N173HCE-E31 (CMN1738)
Panel Size: 17.3" Surface: Antiglare, Hard Coating (3H)
Panel Type: A-Si TFT-LCD, LCM Resolution: 1920(RGB)×1080, FHD, 127PPI
Pixel Format: RGB Vertical Stripe Touch Screen: Without
High Light:

LCM Laptop Innolux LCD Panel

,

17.3" Laptop Innolux LCD Panel

,

N173HCE-E31

N173HCE-E31 Innolux 17.3" LCM Laptop Innolux LCD Panel



Description Of AUO LCD Panel

N173HCE-E31 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 399.5(W)×250.51(H)×4(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 511/550g (Typ./Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm).



Innolux N173HCE-E31 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.0663×0.1989 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1989×0.1989 mm (H×V) [127PPI]
Mechanical Size :
Display Area
381.888×214.812 mm (H×V)
Bezel Area
-
Outline Dim.
399.5×250.51 mm (H×V)
Outline Depth
3.57/4.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Flat (PCBA Flat, T3.4~4.0mm)
Holes & Brackets :
Face mounting holes (8 pcs) on up, down slugs
Other Features :
Weight
511/550g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



Innolux N173HCE-E31 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AAS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
14/11 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.25/1.54 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
94% coverage
Adobe RGB
73% coverage
DCI-P3
75% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Application Of AUO LCD Panel N173HCE-E31

1) On-board navigation

2) Game Boy

3) Mobile Phone

4) Digital Camera

5) MP5

6) Event Data Recorder

7) Tablets





Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

B080EAN04.1 CELL AUO 8.0"
T500HVN08.8 CELL AUO 50"
H546DAN01.5 AUO 5.5"
H546DAN08.0 AUO 5.5"
B080XAN03.5 AUO 7.9"
B080XAN03.2 AUO 7.9"
H499TAN05.0 AUO 5.0"
H520DAN01.1 AUO 5.2"
B116XAN05.0 CELL AUO 11.6"
H495TAN01.0 AUO 5.0"
H598QAN02.1 AUO 6.0"
M185XTN01.2 CELL AUO 18.5"
H598QAN01.0 AUO 6.0"





Quality Control:
1. Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
2. Function Inspection
Make sure all functions are 100% tested ok


Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
