Hard coating 55 inch TFT LCD Module MT5461D01-1 for TV Sets

Hard coating 55 inch TFT LCD Module MT5461D01-1 for TV Sets
Hard coating 55 inch TFT LCD Module MT5461D01-1 for TV Sets

Large Image :  Hard coating 55 inch TFT LCD Module MT5461D01-1 for TV Sets

Product Details:
Place of Origin: KOREA
Brand Name: COST
Certification: ISO9001
Model Number: MT5461D01-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

Hard coating 55 inch TFT LCD Module MT5461D01-1 for TV Sets

Description
Display Colors: 1.07B (8-bit + Hi-FRC) , CIE1931 72% Response Time: 6.5 (Typ.)(G To G)
Surface: Antiglare, Hard Coating (3H) Outline: 1225.8×696.6×33.8 Mm
Display Mode: HVA, Normally Black, Transmissive Panel Type: A-Si TFT-LCD , LCM
High Light:

tft lcd screen

,

tft lcd display module

Hard coating 55 inch TFT LCD Module MT5461D01-1 for TV Sets



TFT LCD Module MT5461D01-1 DETAIL

Panel Brand : CSOT
Panel Model : MT5461D01-1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 55 inch
Resolution : 3840(RGB)×2160 , UHD
Display Mode : HVA, Normally Black, Transmissive
Active Area : 1209.6×680.4 mm
Outline : 1225.8×696.6×33.8 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 4000:1 (Typ.)
Display Colors : 1.07B (8-bit + Hi-FRC) , CIE1931 72%
Response Time : 6.5 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 120Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : V-by-One 8 lane , 51 pins
Input Voltage : 12.0V (Typ.)



Panel Size : 55 inch
Dot Resolution : 3840(RGB)×2160 (UHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 80 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.105×0.315 mm (H×V)
Pixel Pitch : 0.315×0.315 mm (H×V)
Weight : 17.0Kgs
Surface : Antiglare, Hard coating (3H)
Active Area : 1209.6×680.4 mm (H×V)
Bezel Area : 1215.8×686.6 mm (H×V)
Outline Dimension : 1225.8×696.6 mm (H×V)
Outline Depth : 15.1/33.8 (Typ./Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without



FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.



Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
E555HBQ2 EDO 5.5" 720×1280
E499HAP1 EDO 5.0" 720×1280
E499HAQ1 EDO 5.0" 720×1280
E555HBM2 EDO 5.5" 720×1280
E499HAM1 EDO 5.0" 720×1280
M595HBU1 EDO 6.0" 720×1280
M499HBU1 EDO 5.0" 720×1280
E499HAA1 EDO 5.0" 720×1280
E555HAA1 EDO 5.5" 720×1280

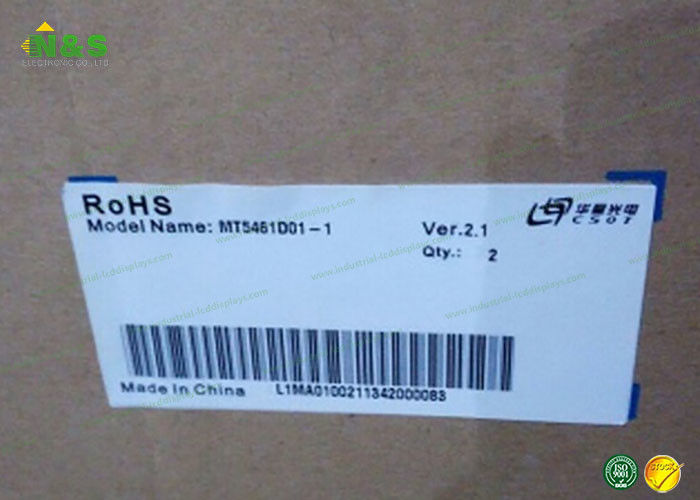

Picture of  MT5461D01-1
