High Brightness A-Si TFT LCD Module 9'' AA090TB01 1280×768 Resolution LVDS Interface

High Brightness A-Si TFT LCD Module 9'' AA090TB01 1280×768 Resolution LVDS Interface
High Brightness A-Si TFT LCD Module 9'' AA090TB01 1280×768 Resolution LVDS Interface High Brightness A-Si TFT LCD Module 9'' AA090TB01 1280×768 Resolution LVDS Interface

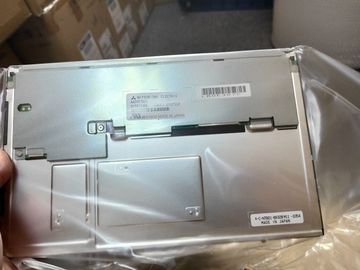

Large Image :  High Brightness A-Si TFT LCD Module 9'' AA090TB01 1280×768 Resolution LVDS Interface

Product Details:
Place of Origin: N/A
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA090TB01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability: 300

High Brightness A-Si TFT LCD Module 9'' AA090TB01 1280×768 Resolution LVDS Interface

Description
Size: 9 Inch Resolution: 1280×768
Brightness: 800 C/R: 1000:1
View Angle: 85/85/85/85 Colors: 262K/16.7M
Backlight: WLED Interface: LVDS
High Light:

tft lcd screen

,

tft lcd panel

1. Mitsubishi AA090TB01 Optical Details





Basic Information : Luminance 800 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 12/12 (Typ.)(Tr/Td) (ms)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)  Operating Mode SWV, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.7M (6-bit / 8-bit)
Color Temperature 6485K White Uniformity 1.30 (Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 50% sRGB 69% coverage
Adobe RGB 52% coverage DCI-P3 52% coverage
Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -



2. Mitsubishi AA090TB01 Mechanical Details



Pixel Features : Number of Pixel 1280(RGB)×768 [WXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.051×0.153 mm Pixel Pitch(W×H) 0.153×0.153 mm
Physical Size : Active Viewing 195.84(W)×117.504(H) mm Overall Dim. 219(W)×136.2(H) mm
Bezel Opening 199.4(W)×120.7(H) mm Overall Depth 9.5±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 15:9 Shape Style -
Fixation : Side mounting holes (4-M2) on left, right bezel
Other Detail : Mass 330g (Typ.) Surface Antiglare, Hard coating (3H)





3. Mitsubishi AA090TB01 Lightting Details



Lamp Features: Lamp Shape 2 strings Lamp Type WLED Position Edge light type
Exchange No Amount 2 strings Life 100K(Typ.) (Hours)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE FI-S6P-HFE 1 pcs 1.25 mm 6 pins
Backlight Driver : With LED Driver
Driver Electrical : Input Current 570/720mA (Typ./Max.) Input Voltage 12.0±1.2V



4. Service



High Brightness A-Si TFT LCD Module 9'' AA090TB01 1280×768 Resolution LVDS Interface 0



5.FAQ





Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
