Product Details:
|
| Panel Size :: | 12.1 Inch | Resolution :: | 1400(RGB)×1050 , SXGA+ |
|---|---|---|---|
| Active Area :: | 245.7×184.275 Mm | Brightness :: | 160 Cd/m² (Typ.) |
| Contrast Ratio :: | 250:1 (Typ.) | Display Colors :: | 262K (6-bit) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

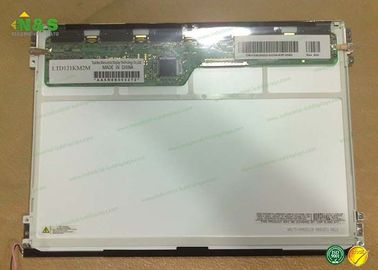

12.1 inch LTD121KM2M TOSHIBA with 245.7×184.275 mm Active Area
LTD121KM2M Specification
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 1400(RGB)×1050 (SXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 144 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0585×0.1755 mm (H×V) |
| Pixel Pitch : | 0.1755×0.1755 mm (H×V) |
| Weight : | 305g |
| Active Area : | 245.7×184.275 mm (H×V) |
| Bezel Area : | 250.4×188.9 mm (H×V) |
| Outline Dimension : | 269×199 mm (H×V) |
| Outline Depth : | 6.8 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.0) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTM04C387S | TOSHIBA | 4.0" | 640×480 |
| LTM04C380S | TOSHIBA | 4.0" | 640×480 |
| LTM026DF6 | TOSHIBA | 2.6" | 240×400 |
| LTM025D88 | TOSHIBA | 2.5" | 240×345 |
| LTM024D030* | TOSHIBA | 2.4" | 240×320 |
| LTA070B0C1A | TOSHIBA | 7.0" | 480×234 |
| LTA070B070F | TOSHIBA | 7.0" | 800×480 |
| LTA070A251A | TOSHIBA | 7.0" | 480×234 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTD121KM2M Specification
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Voltage : | 620V (Typ.) | |||||
| Lamp Current : | 6.0mA (Typ.) | |||||
| Lamp Startup Voltage : | 1550V (Min.)(Ta=0℃) | |||||
| Lamps Power Consumption : | 4.8W (Typ.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Lamp Driver Board : | No | |||||
