Product Details:
|
| Resolution :: | 1024(RGB)×768 , XGA | Active Area :: | 245.76×184.32 Mm |
|---|---|---|---|
| Outline :: | 278.3×209 Mm | Brightness :: | 350 Cd/m² (Typ. |
| Display Colors :: | 262K (6-bit) | Response Time :: | 10/30 (Typ.)(Tr+Td) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

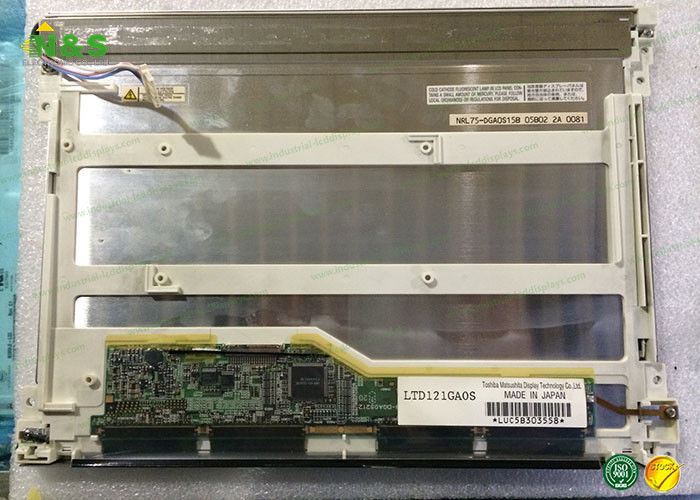

Normally White 12.1 inch LTD121GA0S TOSHIBA 400:1 262K CCFL LVDS
LTD121GA0S DETAIL
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 660g (Typ.) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 250.8×189.4 mm (H×V) |
| Outline Dimension : | 278.3×209 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT057AA34C00 | TOSHIBA | 5.7" | 320×240 |
| LT057AA34B00 | TOSHIBA | 5.7" | 320×240 |
| LTA106C211F | TOSHIBA | 10.6" | 1280×768 |
| LTD131EWHK | TOSHIBA | 13.1" | 1366×768 |
| LTM027MDL2100 | TOSHIBA | 2.7" | 480×320 |
| EDTCA39QRF | TOSHIBA | 5.8" | 400×234 |
| LT085AC18N00 | TOSHIBA | 8.5" | 800×480 |
| LTD121EA4G | TOSHIBA | 12.1" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTD121GA0S DETAIL
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 580V (Typ.) | |||||
| Lamp Current : | 3.0/6.5mA (Min./Max.) | |||||
| Lamp Startup Voltage : | 1400V (Min.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Lamp Driver Board : | No | |||||
