Product Details:
|
| Panel Size :: | 12.1 Inch | Resolution :: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Active Area :: | 245.76×184.32 Mm | Brightness :: | 200 Cd/m² (Typ.) |
| Display Colors :: | 262K (6-bit) | Viewing Angle :: | 30/30/10/20 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

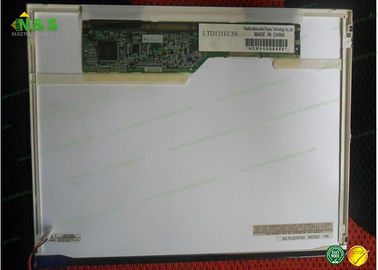

LTD121EC5S TOSHIBA Normally White with 245.76×184.32 mm Active Area 12.1 inch
LTD121EC5S DETAIL
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 265g (Typ.) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 250.4×188.8 mm (H×V) |
| Outline Dimension : | 261×199 mm (H×V) |
| Outline Depth : | 5.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2.Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TFD58W30MM | TOSHIBA | 5.8" | 400×234 |
| LT111EE06000 | TOSHIBA | 11.1" | 1366×768 |
| LTA170C070F | TOSHIBA | 17.0" | 640×480 |
| LTA070B792F | TOSHIBA | 7.0" | 800×480 |
| LTM07C729 | TOSHIBA | 7.0" | 852×480 |
| LTA070B512F | TOSHIBA | 7.0" | 800×480 |
| LTM024D780 | TOSHIBA | 2.4" | 240×320 |
| LTD141EWXF | TOSHIBA | 14.1" | 1280×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTD121EC5S DETAIL
| Lamp Position : | Edge light type (Bottom side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Voltage : | 625V (Typ.) | |||||
| Lamp Current : | 6.0mA (Typ.) | |||||
| Lamp Startup Voltage : | 1200/1400V (Min./Max.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Lamp Driver Board : | No | |||||
