Product Details:
|
| Panel Size: | 9.6 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 9.6 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 104 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.081×0.243 mm (H×V) | |
| Pixel Pitch : | 0.243×0.243 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 194.4×145.8 mm (H×V) | |
| Bezel Area : | 197.4×148.8 mm (H×V) | |
| Outline Dimension : | 224×169.2 mm (H×V) | |
| Outline Depth : | 9.0±0.3 mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Response Time : | 25 (Typ.)(Tr+Td) | |
| Viewing Angle : | 70/70/45/50 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.43 (Max.)(13 points) | |
| Sunlight Readable : | N |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HSD040F8W1-B11 | HannStar | 4.0" | 480×800 |
| HSD040F8W1-B01 | HannStar | 4.0" | 480×800 |
| HSD040F8W1-A11 | HannStar | 4.0" | 480×800 |
| HSD060BMW1-D00 | HannStar | 6.0" | 540×960 |
| HSD035F7N1-A02 | HannStar | 3.5" | 320×480 |
| HSD043B8W2-C00 | HannStar | 4.3" | 480×800 |
| HSD070PFW3-B02-0299 | HannStar | 7.0" | 1024×600 |
| HSD045F8W1-B01 | HannStar | 4.5" | 480×854 |
| HSD045F8W1-A01 | HannStar | 4.5" | 480×854 |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

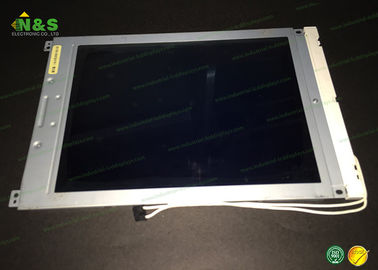

HSD096MS11-A Picture
