Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 170.88×128.16 Mm | Outline: | 199.5×149×12 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

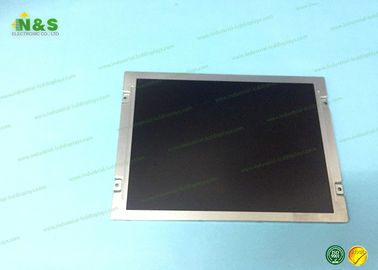

AA084VF03 TFT LCD Module Mitsubishi Normally White 8.4 inch for Industrial Application panel
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packing & Delivery for our LCD Screen Panel Replacements:
AA084VF03 Specification
| Panel Size : | 8.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.267 mm (H×V) |
| Pixel Pitch : | 0.267×0.267 mm (H×V) |
| Weight : | 350g (Typ.) |
| Surface : | Hard coating (2H), Antireflection |
| Active Area : | 170.88×128.16 mm (H×V) |
| Bezel Area : | 174.9×132.2 mm (H×V) |
| Outline Dimension : | 199.5×149 mm (H×V) |
| Outline Depth : | 11.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 480 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150XN21 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
