Product Details:
|
Panel Size: | 23.6 Inch | Resolution: | 1920(RGB)×1080 , FHD |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
High Light: | industrial lcd screen,industrial lcd panel |
Panel Size : | 23.6 inch | |
Dot Resolution : | 1920(RGB)×1080 (FHD) | |
Pixel Configuration : | RGB Vertical Stripe | |
Pixel Density : | 93 PPI | |
Aspect Ratio : | 16:9 (H:V) | |
Form Factor : | Flat Rectangle Display | |
Dot Pitch : | 0.0905×0.2715 mm (H×V) | |
Pixel Pitch : | 0.2715×0.2715 mm (H×V) | |
Weight : |
|
|
Surface : | Antiglare (Haze 25%), Hard coating (3H) | |
Active Area : | 521.28×293.22 mm (H×V) | |
Bezel Area : | 525.22×297.22 mm (H×V) | |
Outline Dimension : | 544.8×320.5 mm (H×V) | |
Outline Depth : | 7.1/9.6 (Typ.) mm | |
Landscape or Portrait : | Landscape type | |
Touch Panel : | Without |
Display Mode : |
|
|
Brightness : | 250 cd/m² (Typ.) | |
Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | |
Display Color : | 16.7M (6-bit + Hi-FRC) | |
Color Gamut : | 72% NTSC (CIE1931) | |
Response Time : | 1.5/3.5 (Typ.)(Tr/Td) | |
Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
Viewing Direction : | 6 o'clock | |
White color Chromaticity : |
|
|
White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | |
Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
BV045WVE-N40 | BOE | 4.5" | 480×800 |
MV315QHB-N10 | BOE | 31.5" | 2560×1440 |
AV080WSB-NW0 | BOE | 8.0" | 1024×600 |
AV080WVB-NW1 | BOE | 8.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

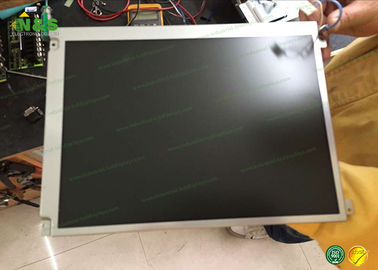

HM236WU1-100 Picture
