Product Details:
|
| Panel Size: | 10.1 Inch | Resolution: | 1280(RGB)×800 , WXGA |
|---|---|---|---|
| Display Mode: | IPS, Normally Black, Transmissive | Signal Interface: | LVDS (1 Ch, 8-bit) , 40 Pins |
| High Light: | lcd display panel,innolux lcd screen |
||
| Panel Size : | 10.1 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 149 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) | |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) | |
| Weight : |
|
|
| Surface : | Hard coating | |
| Active Area : | 216.96×135.6 mm (H×V) | |
| Outline Dimension : | 238.26×157.5 mm (H×V) | |
| Outline Depth : | 2.35/4.31 (Typ./Max.) mm | |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right, up, down slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Response Time : | 10/15 (Typ.)(Tr/Td) | |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33/1.43 (Typ./Max.)(13 points) | |
| Sunlight Readable : | N |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |
| F04801-01Z | Innolux | 4.8" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

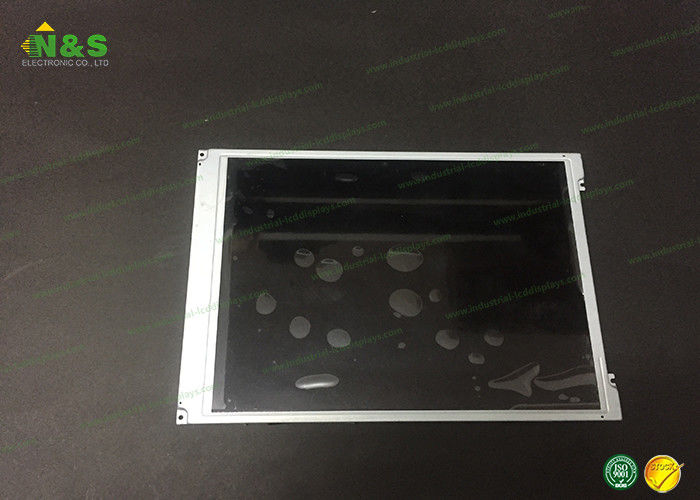

HJ101IA-01D Picture
