Product Details:
|
| Panel Size: | 4.3 Inch | Resolution: | 540(RGB)×960 , QHD |
|---|---|---|---|
| Display Mode: | MVA, Normally Black, Transmissive | Signal Interface: | MDDI/MIPI , 23 Pins |
| High Light: | auo display panel,auo lcd screen |
||
| Panel Size : | 4.3 inch |
| Dot Resolution : | 540(RGB)×960 (qHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 256 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.033×0.099 mm (H×V) |
| Pixel Pitch : | 0.099×0.099 mm (H×V) |
| Weight : | TBD |
| Active Area : | 53.46×95.04 mm (H×V) |
| Outline Dimension : | 58.54×105.7 mm (H×V) |
| Outline Depth : | 1.5 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 500 cd/m² (Typ.) | |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 70% NTSC (CIE1931) | |
| Response Time : | 20 (Typ.)(Tr+Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.310; Wy:0.320 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.

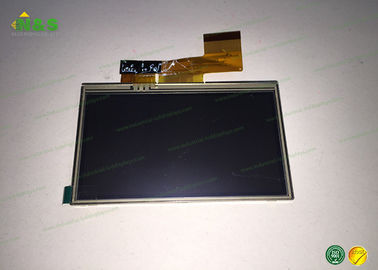

H429AL01 V0 Picture
