Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 211.2×158.4 Mm |
| Outline: | 237.8×170×6 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec tft lcd,nec lcd screen |
||
NL8060BC26-15 NEC LCD Panel 10.4 inch Antireflection with 211.2×158.4 mm Active Area
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
NL8060BC26-15 Detail
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 270/300g (Typ./Max.) |
| Surface : | Antireflection |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.2×162.4 mm (H×V) |
| Outline Dimension : | 237.8×170 mm (H×V) |
| Outline Depth : | 5.8/6.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (1-Φ2.8, 1-Φ3.2,1-R1.4, 1-R1.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| TD015OC1 | E Ink | 1.54" | 200×200 |
| ED060XC3 | E Ink | 6.0" | 758×1024 |
| ED060SCN | E Ink | 6.0" | 600×800 |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | TBD |
| Viewing Angle : | 50/50/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White Variation : | 1.40 (Max.)(9 points) |
| Sunlight Readable : | N |

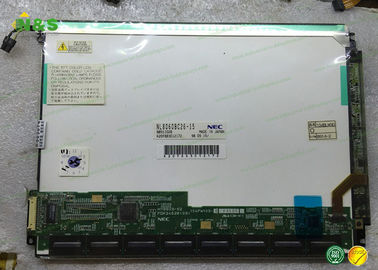

NL8060BC26-15 Picture
