Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Display Colors: | 262K (6-bit) |
| Outline: | 315.5×242.3×7.3 Mm | Shape Style: | Wedge (PCBA Bent, Depth ≥5.2mm) |
| High Light: | lg display panel,lg lcd display |
||
15.0 Inch LP150X1 LG LCD Panel LCM 1024×768 120 250/1 262K CCFL LVDS
LP150X1 Detail
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 685±15g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 308.5×232.5 mm (H×V) |
| Outline Dimension : | 315.5×242.3 mm (H×V) |
| Outline Depth : | 7.0±0.3 mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 120 cd/m² (Typ.) |
| Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.340 |
| White Variation : | 1.50 (Max.)(9 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Packing & Delivery for our LCD Screen Panel Replacements:

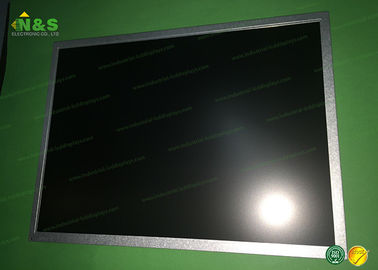

LP150X1 Picture
