Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Modetion: | TN, Normally White, Transmissive | Outline: | 243×185.1×11 Mm |
| Active Area: | 211.2×158.4 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec tft lcd,nec lcd screen |
||
NEC NL6448BC33-64C NEC LCD Panel 10.4 inch for Industrial Application
NL6448BC33-64C Specification
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 475/500g (Typ./Max.) |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | Y |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| TD015OC1 | E Ink | 1.54" | 200×200 |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

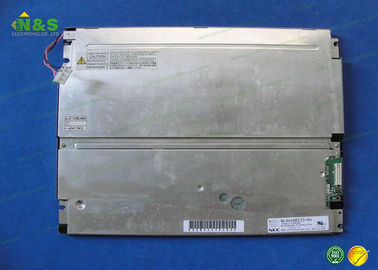

NL6448BC33-64C Picture
