Product Details:
|
| Panel Size :: | 12.1 Inch | Resolution :: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Active Area :: | 246×184.5 Mm | Outline :: | 278.3×209×11 Mm |
| Brightness :: | 250 Cd/m² (Typ.) | Response Time :: | 10/25 (Typ.)(Tr/Td) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

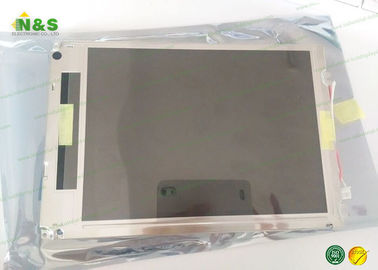

Normally White LTD121C31L TOSHIBA 12.1 inch with 246×184.5 mm Active Area
LTD121C31L Information
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 670g (Typ.) |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 278.3×209 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTD121C31L Information
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 60K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 520V (Typ.) | |||||
| Lamp Current : | 3.0/6.5mA (Min./Max.) | |||||
| Lamp Startup Voltage : | 1200/1900V (Min./Max.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Lamp Driver Board : | No | |||||
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTM07C729 | TOSHIBA | 7.0" | 852×480 |
| LTA070B512F | TOSHIBA | 7.0" | 800×480 |
| LTM024D780 | TOSHIBA | 2.4" | 240×320 |
| LTD141EWXF | TOSHIBA | 14.1" | 1280×800 |
| LTD154EX4N | TOSHIBA | 15.4" | 1280×800 |
| LTM10C349 | TOSHIBA | 10.4" | 800×600 |
| LTA070B053F | TOSHIBA | 7.0" | 800×480 |
