Product Details:
|
| Frequency: | 60Hz | Display Colors: | 16.7M (8-bit) |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Resolution: | 1920(RGB)×1080 , FHD |
| High Light: | tft lcd display,innolux lcd screen |
||
CMO M236H3-LA2 23.6 inch Normally White with 521.28×293.22 mm Active Area
M236H3-LA2 Specification
| Panel Brand : | CMO |
| Panel Model : | M236H3-LA2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 23.6 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 521.28×293.22 mm |
| Outline : | 544.8×320.5 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 12S8P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 23.6 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 93 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0905×0.2715 mm (H×V) |
| Pixel Pitch : | 0.2715×0.2715 mm (H×V) |
| Weight : | 2.45/2.50Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 521.28×293.22 mm (H×V) |
| Bezel Area : | 525.22×297.22 mm (H×V) |
| Outline Dimension : | 544.8×320.5 mm (H×V) |
| Outline Depth : | 11.4±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ET017QC1 | E Ink | 1.7" | 240×320 |
| ET017QG1 | E Ink | 1.7" | 240×320 |
| ED060XG1 | E Ink | 6.0" | 758×1024 |
| EC097SC1 | E Ink | 9.7" | 600×800 |
| ED097OC6 | E Ink | 9.7" | 1200×825 |
| ED097OC4 | E Ink | 9.7" | 1200×825 |
| ED060SCF | E Ink | 6.0" | 600×800 |
| ED060SCC | E Ink | 6.0" | 600×800 |
| ED060SC9 | E Ink | 6.0" | 600×800 |
| ED060XC5 | E Ink | 6.0" | 758×1024 |
| ED060SC5 | E Ink | 6.0" | 600×800 |
| ED050SU3 | E Ink | 5.0" | 800×600 |
| ED060SC7 | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

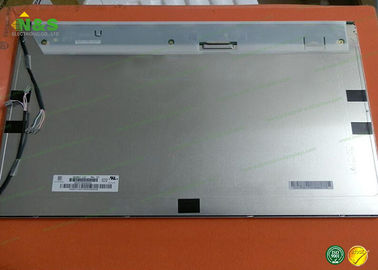

M236H3-LA2 Picture
