Product Details:
|
Panel Size :: | 11.1 Inch | Resolution :: | 1366(RGB)×768 , WXGA |
---|---|---|---|
Active Area :: | 245.88×138.24 Mm | Outline :: | 260×152×5.9 Mm |
Surface :: | Glare (Haze 0%) | Brightness :: | 200 Cd/m² (Typ.) |
High Light: | industrial touch screen display,industrial lcd screen |

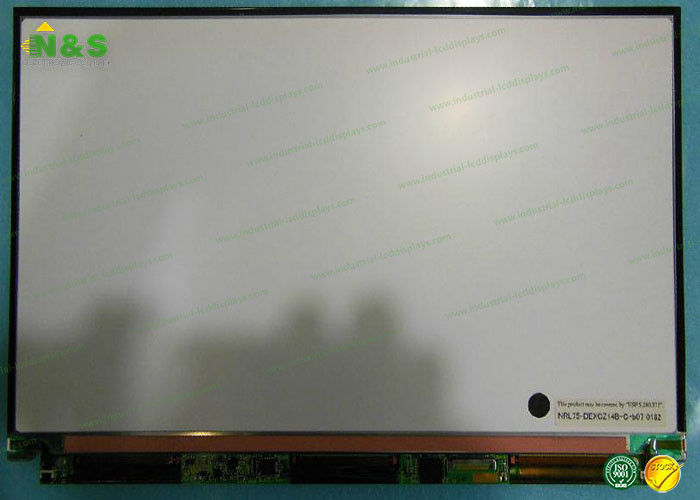

11.1 inch LTD111EXDA TOSHIBA with 245.88×138.24 mm Active Area
LTD111EXDA Information
Panel Size : | 11.1 inch |
---|---|
Dot Resolution : | 1366(RGB)×768 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 141 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.060×0.180 mm (H×V) |
Pixel Pitch : | 0.180×0.180 mm (H×V) |
Weight : | 200g (Typ.) |
Surface : | Glare (Haze 0%) |
Active Area : | 245.88×138.24 mm (H×V) |
Bezel Area : | 250.9×143.3 mm (H×V) |
Outline Dimension : | 260×152 mm (H×V) |
Outline Depth : | 5.9-3.7(Max.) mm |
Holes & Brackets : | Face mounting holes (4 pcs) on up, down slugs |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
LTD111EXDA Information
Lamp Position : | Edge light type (Bottom side) | |||||
---|---|---|---|---|---|---|
Lamp Type : | CCFL | |||||
Lamp Amount : | 1 pcs | |||||
Lamp Shape : | Straight | |||||
Lamp Voltage : | 625V (Typ.) | |||||
Lamp Current : | 6.0mA (Typ.) | |||||
Interface Type : | Connector | |||||
Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
Lamp Driver Board : | No |
