Product Details:
|
| Response Time: | 1.3/3.7 (Typ.)(Tr/Td) | Active Area: | 473.76×296.1 Mm |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Display Colors: | 16.7M (6-bit + Hi-FRC) |
| Contrast Ratio: | 1000:1 (Typ.) | Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) | Surface: | Glare (Haze 0%), Hard Coating (2H), Reflection 3.0% (Max.) |
| High Light: | tft lcd display,lcd display panel |
||
CMO M220Z1-L06 LCD Panel 22.0 inch Normally White with 473.76×296.1 mm Active Area
M220Z1-L06 LCD Panel Specification
| Panel Brand : | CMO |
| Panel Model : | M220Z1-L06 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 22.0 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 473.76×296.1 mm |
| Outline : | 493.7×320.1 mm |
| Surface : | Glare (Haze 0%), Hard coating (2H), Reflection 3.0% (Max.) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 22.0 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.55Kgs (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Reflection 3.0% (Max.) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.7×300.1 mm (H×V) |
| Outline Dimension : | 493.7×320.1 mm (H×V) |
| Outline Depth : | 16.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (8-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Pane: | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| PW100XU2 | E Ink | 10.0" | 640×468 |
| PW090XUD | E Ink | 9.0" | 640×220 |
| PW090XUC | E Ink | 9.0" | 640×220 |
| PW090XUB | E Ink | 9.0" | 640×220 |
| PW090XUA | E Ink | 9.0" | 640×220 |
| PW090XU8 | E Ink | 9.0" | 640×220 |
| PW090XU7 | E Ink | 9.0" | 640×220 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

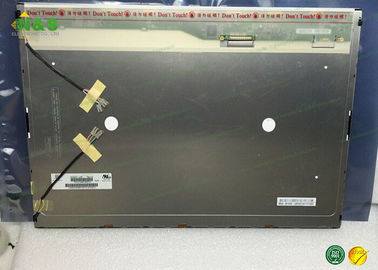

M220Z1-L06 Innolux LCD Panel Picture
