Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.9 Inch |
|---|---|---|---|
| Resolution: | 768(RGB)×1024 , XGA | Display Mode: | TN, Normally White, TMR |
| Active Area: | 119.808×159.744 Mm | Outline: | 129×171.07×4.81 Mm |
| High Light: | lg display panel,lg replacement screen |
||
LP079X01-SMA1 LG LCD Pane 7.9 inch with 119.808×159.744 mm Active Area
Our Company Strength in LCD Screen Sourcing:
LP079X01-SMA1 Detail
| Panel Size : | 7.9 inch |
|---|---|
| Dot Resolution : | 768(RGB)×1024 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 162 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.052×0.156 mm (H×V) |
| Pixel Pitch : | 0.156×0.156 mm (H×V) |
| Weight : | 70.0g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating |
| Active Area : | 119.808×159.744 mm (H×V) |
| Bezel Area : | 124.32×164.1 mm (H×V) |
| Outline Dimension : | 129×171.07 mm (H×V) |
| Outline Depth : | 1.96/4.81 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on up, down slugs |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
| LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
| LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| Display Mode : | AH-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 425 cd/m² (Typ.) |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 17 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.300; Wy:0.325 |
| White Variation : | 1.18/1.33 (Typ./Max.)(96 points) |
| Sunlight Readable : | N |

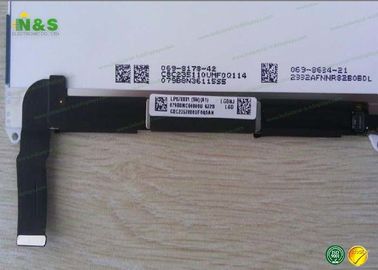

LP079X01-SMA1 Picture
