Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, TMR |
| Active Area: | 70.08×52.56 Mm | Outline: | 76.9×63.9×4.45 Mm |
| High Light: | lg lcd display,lg replacement screen |
||
SAMSUNG LMS350GF02-001 LG LCD Pane 3.5 inch Normally White for Portable Navigation panel
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
LMS350GF02-001 Information
| Panel Size : | 3.5 inch |
|---|---|
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 43/48g (Typ./Max.) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.88×55.36 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 4.25/4.45 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, TMR |
|---|---|
| Brightness : | 260 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 250 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.330; Wy:0.350 |
| White Variation : | 1.25 (Max.)(9 points) |
| Sunlight Readable : | Y |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS549HQ02 | Samsung | 5.5" | 720×1280 |
| AMS520BQ12-0 | Samsung | 5.2" | 1080×1920 |
| AMS497DX12-0 | Samsung | 5.0" | 720×1280 |
| AMS163AN01 | Samsung | 1.63" | 320×320 |
| AMS510CV02 | Samsung | 5.1" | 1080×1920 |
| AMS510CV01 | Samsung | 5.1" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

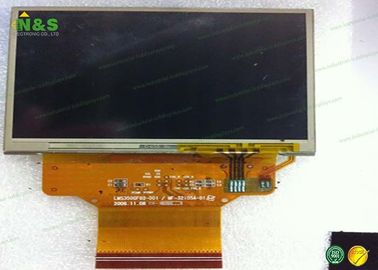

LMS350GF02-001 Picture
