Product Details:
|
| Resolution: | 800(RGB)×480 , WVGA | Panel Size: | 5.2 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Display Mode: | 16.7M (8-bit) , CIE1931 50% |
| Brightness: | 500 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) |
| Response Time: | 30/30 (Typ.)(Tr/Td) | Viewing Angle: | 60/60/60/40 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | tft lcd screen,tft lcd panel |
||
LT052MA92B00 5.2 inch TFT LCD Module TOSHIBA Hard coating with 114×68.4 mm
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
LT052MA92B00 Detail
| Panel Size : | 5.2 inch | |||||||||||||||||||||
| Dot Resolution : | 800(RGB)×480 (WVGA) | |||||||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||||||||||||
| Pixel Density : | 178 PPI | |||||||||||||||||||||
| Aspect Ratio : | 15:9 (H:V) | |||||||||||||||||||||
|
Flat Rectangle Display | |||||||||||||||||||||
| Dot Pitch : | 0.0475×0.1425 mm (H×V) | |||||||||||||||||||||
| Pixel Pitch : | 0.1425×0.1425 mm (H×V) | |||||||||||||||||||||
| Weight : | 90g (Typ.) | |||||||||||||||||||||
|
Hard coating (3H) | |||||||||||||||||||||
| Active Area : | 114×68.4 mm (H×V) | |||||||||||||||||||||
|
119.4×71.2 mm (H×V) | |||||||||||||||||||||
| Outline Dimension : | 127.7×82 mm (H×V) | |||||||||||||||||||||
|
4.28±0.5 mm | |||||||||||||||||||||
| Landscape or Portrait : | Landscape type | |||||||||||||||||||||
| Touch Panel : | Embeded (4-wire Resistive) | |||||||||||||||||||||
| Display Mode : | TN, Normally White, Transmissive | |||||||||||||||||||||
|
500 cd/m² (Typ.) | |||||||||||||||||||||
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) | |||||||||||||||||||||
| Display Color : | 16.7M (8-bit) | |||||||||||||||||||||
| Color Gamut : | 50% NTSC (CIE1931) | |||||||||||||||||||||
| Response Time : | 30/30 (Typ.)(Tr/Td) | |||||||||||||||||||||
| Viewing Angle : | 60/60/60/40 (Typ.)(CR≥10) (L/R/U/D) | |||||||||||||||||||||
|
12 o'clock | |||||||||||||||||||||
| Sunlight Readable : | N | |||||||||||||||||||||
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

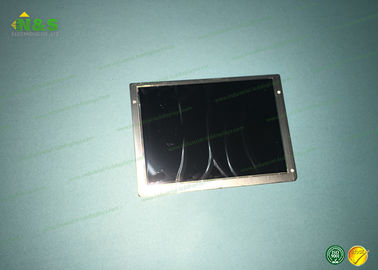

LT052MA92B00 Picture
