Product Details:
|
| Panel Size :: | 10.4 Inch | Active Area :: | 211.2×158.4 Mm |
|---|---|---|---|
| Surface :: | Reflection 1.35% (Typ.) | Brightness :: | 400 Cd/m² (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

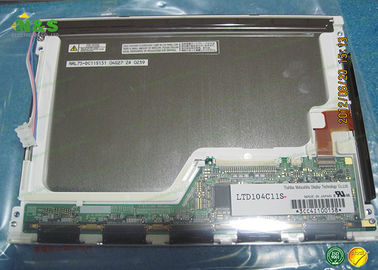

LTD104C11R TOSHIBA Normally White 10.4 inch with 211.2×158.4 mm Active Area
LTD104C11R Specification
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 500g (Typ.) |
| Surface : | Reflection 1.35% (Typ.) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.6×161.8 mm (H×V) |
| Outline Dimension : | 238.5×177.5 mm (H×V) |
| Outline Depth : | 11.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTD104C11R Specification
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 460V (Typ.) | |||||
| Lamp Current : | 3.0/6.0/6.5mA (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1200V (Min.)(Ta=-10℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Lamp Driver Board : | No | |||||
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTM14C406S | TOSHIBA | 14.0" | 1024×768 |
| LTA320C141F | TOSHIBA | 31.5" | 1366×768 |
| LTD104XA1F | TOSHIBA | 10.4" | 1024×768 |
| EDTCA41 | TOSHIBA | 6.5" | 320×234 |
| LT154DEZ5Z00 | TOSHIBA | 15.4" | 1920×1200 |
| LT154DEZ1S00 | TOSHIBA | 15.4" | 1920×1200 |
| LT145EE15000 | TOSHIBA | 14.5" | 1600×900 |
| LT141DENRP00 | TOSHIBA | 14.1" | 1400×1050 |
