Product Details:
|
| Panel Size :: | 5.6 Inch | Active Area :: | 122.88×72 Mm |
|---|---|---|---|
| Surface :: | Glare (Haze 0%) | Brightness :: | 300 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

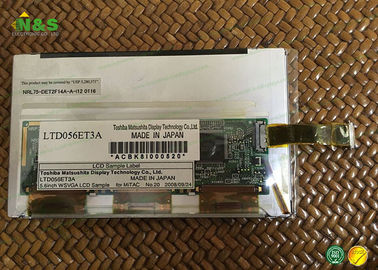

Normally White LTD056ET3A TOSHIBA 5.6 inch 1024×600 300 with 122.88×72 mm Active Area
LTD056ET3A Specification
| Panel Size : | 5.6 inch |
|---|---|
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 211 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.040×0.120 mm (H×V) |
| Pixel Pitch : | 0.120×0.120 mm (H×V) |
| Weight : | 61g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 122.88×72 mm (H×V) |
| Bezel Area : | 127.6×76.7 mm (H×V) |
| Outline Dimension : | 136.8×85.9 mm (H×V) |
| Outline Depth : | 2.95/4.9 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTD056ET3A Specification
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 50 (Max.)(Tr+Td) |
| Viewing Angle : | 40/40/20/30 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
LTD056ET3A Specification
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 2 strings | |||||
| Lamp Shape : | 2 strings | |||||
| Lamp Voltage : | 20.0/24.8/28.2V (Min./Typ./Max.) | |||||
| Lamp Current : | 15/20mA (Typ./Max.) | |||||
| Lamp Driver Board : | No | |||||
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
