Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 24.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | S-IPS, Normally Black, Transmissive |
| Active Area: | 518.4×324 Mm | Outline: | 546.4×353 Mm×48.9 Mm |
| High Light: | lg display panel,lg lcd display |
||
LM240WU5-SLA4 24.0 inch LG LCD Pane LCM 1920×1200 250 1000:1 1.07B RGB LED LVDS
LM240WU5-SLA4 Specification
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.30/3.50Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 546.4×352 mm (H×V) |
| Outline Depth : | 48.9 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
| Display Mode : | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 1.07B (10-bit) |
| Color Gamut : | 110% NTSC (CIE1931) |
| Response Time : | 6/6 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25 (Max.)(9 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH500M01-SH02 | LG Display | 5.0" | 540×960 |
| LH500WX5-SH01 | LG Display | 5.0" | 720×1280 |
| LH500WX9-SH01 | LG Display | 5.0" | 720×1280 |
| LH550WX1-SH03 | LG Display | 5.5" | 720×1280 |
| LC550DUK-SGK2 | LG Display | 55" | 1920×1080 |
| LH400WV8-SH01 | LG Display | 4.0" | 480×800 |
| LH500WF3-SH01 | LG Display | 5.0" | 1080×1920 |
| LC550DPY-SHA1 | LG Display | 55" | 1920×1080 |
| LC420DUJ-FFE2 | LG Display | 42" | 1920×1080 |
| LH470WX3-SH05 | LG Display | 4.7" | 720×1280 |
| LC550DUY-SHA2 | LG Display | 55" | 1920×1080 |
| LC650EGY-SHM1 | LG Display | 65" | 3840×2160 |
| LC650DUY-SGM1 | LG Display | 65" | 1920×1080 |
| LH499WX1-SH01 | LG Display | 5.0" | 720×1280 |
| LM195WD1-TJBA | LG Display | 19.5" | 1600×900 |
| LH430WV6-SH01 | LG Display | 4.3" | 480×800 |
| LH500WX2-SH05 | LG Display | 5.0" | 720×1280 |
| LC430EGY-SHM1 | LG Display | 43" | 3840×2160 |
| LC600DUK-SGK1 | LG Display | 60" | 1920×1080 |

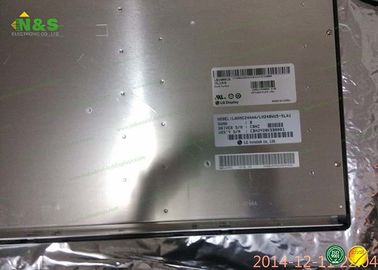

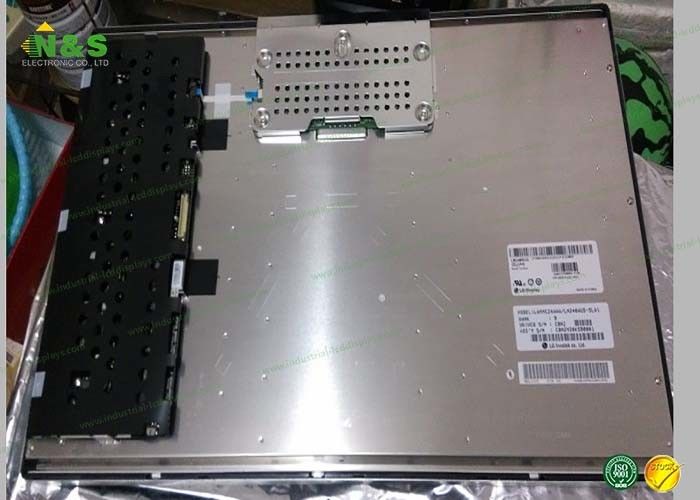

LM240WU5-SLA4 Picture
