Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 246×184.5 Mm | Outline: | 280×210×12.5 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

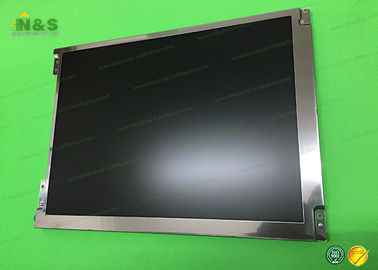

12.1 inch AA121SL08 TFT LCD Module Mitsubishi Normally White with 246×184.5 mm
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA084SB11--T2 | Mitsubishi | 8.4" | 800×600 |
| AA104XF12-CE-01 | Mitsubishi | 10.4" | 1024×768 |
| D150X-N02 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
AA121SL08 DETAIL
| Panel Size : | 12.1 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 720g (Typ.) |
| Surface : | Hard coating (2H), Antireflection |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 280×210 mm (H×V) |
| Outline Depth : | 12.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
