Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | IPS, Normally Black, Transmissive |
| Active Area: | 108×64.8 Mm | Outline: | 118.5×84.7×5.2 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

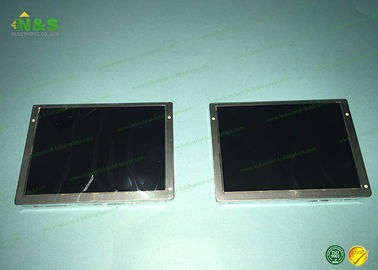

5.0 inch AA050MG02 TFT LCD Module Mitsubishi 800×480 with 108×64.8 mm Active Area
AA050MG02 Information
| Panel Size : | 5.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 188 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.045×0.135 mm (H×V) |
| Pixel Pitch : | 0.135×0.135 mm (H×V) |
| Weight : | 80g (Typ.) |
| Surface : | Antiglare, Hard coating (2H), Antireflection |
| Active Area : | 108×64.8 mm (H×V) |
| Bezel Area : | 110.0×66.8 mm (H×V) |
| Outline Dimension : | 118.5×84.7 mm (H×V) |
| Outline Depth : | 3.9/5.2 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 800 cd/m² (Typ.) |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 12/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(5 points) |
| Sunlight Readable : | Y |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA121SK01 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ23A | Mitsubishi | 12.1" | 800×600 |
| AA121SJ23 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ22 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ11 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ03 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ02 | Mitsubishi | 12.1" | 800×600 |
