Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | IPS, Normally Black, Transmissive |
| Active Area: | 108×64.8 Mm | Outline: | 118.5×84.7×5.2 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

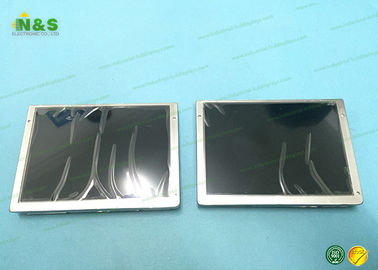

Normally Black with 108×64.8 mm Active Area AA050MG01 TFT LCD Module Mitsubishi
AA050MG01 Information
| Panel Size : | 5.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 188 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.045×0.135 mm (H×V) |
| Pixel Pitch : | 0.135×0.135 mm (H×V) |
| Weight : | 80g (Typ.) |
| Surface : | Clear, Hard coating (2H) |
| Active Area : | 108×64.8 mm (H×V) |
| Bezel Area : | 110.0×66.8 mm (H×V) |
| Outline Dimension : | 118.5×84.7 mm (H×V) |
| Outline Depth : | 3.9/5.2 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 800 cd/m² (Typ.) |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 12/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084VB01 | Mitsubishi | 8.4" | 640×480 |
| AA084SB01--T2 | Mitsubishi | 8.4" | 800×600 |
| AA084SA02 | Mitsubishi | 8.4" | 800×600 |
| AA084SA01--T1 | Mitsubishi | 8.4" | 800×600 |
| AA065VB07 | Mitsubishi | 6.5" | 640×480 |
| AA065VA01 | Mitsubishi | 6.5" | 640×480 |
| AA057VF01 | Mitsubishi | 5.7" | 640×480 |
