Product Details:
|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 12.1 Inch |
|---|---|---|---|
| Display Mode :: | TN, Normally White, Transmissive | Outline :: | 278.3×209×11 Mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||

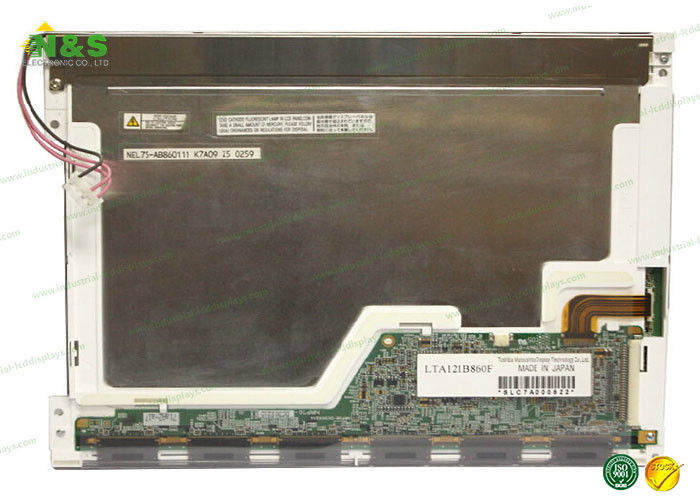

LTA121B860F TOSHIBA 12.1 inch with 246×184.5 mm Active Area
LTA121B860F Specification
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 680g (Typ.) |
| Surface : | Hard coating |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 278.3×209 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA121B860F Specification
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 380 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.320 |
| Sunlight Readable : | N |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packing & Delivery for our LCD Screen Panel Replacements:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT057AA34C00 | TOSHIBA | 5.7" | 320×240 |
| LT057AA34B00 | TOSHIBA | 5.7" | 320×240 |
| LTA106C211F | TOSHIBA | 10.6" | 1280×768 |
| LTD131EWHK | TOSHIBA | 13.1" | 1366×768 |
| LTM027MDL2100 | TOSHIBA | 2.7" | 480×320 |
| EDTCA39QRF | TOSHIBA | 5.8" | 400×234 |
| LT085AC18N00 | TOSHIBA | 8.5" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTA121B860F Specification
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 12K(Min.) (Hours) | |||||
| Lamp Voltage : | 460V (Typ.) | |||||
| Lamp Current : | 3.0/7.0/7.5mA (Min./Typ./Max.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03(4-3)VS-1N | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HHL | |
| Lamp Driver Board : | No | |||||
