Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 20.0 Inch |
---|---|---|---|
Resolution: | 1600(RGB)×900 , HD+ | Display Mode: | TN, Normally White, Transflective |
Active Area: | 442.8×249.075 Mm | Outline: | 462.8×272 Mm |
High Light: | lg display panel,lg lcd display |
LM201U05-SLA2 20.1 inch LG LCD Pane LCM 1600×900 250 1000:1 16.7M WLED LVDS
LM201U05-SLA2 Detail
Panel Size : | 20.0 inch |
---|---|
Dot Resolution : | 1600(RGB)×900 (HD+) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 91 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.09225×0.27675 mm (H×V) |
Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
Weight : | 1.49/1.50Kgs (Typ./Max.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 442.8×249.075 mm (H×V) |
Bezel Area : | 446.8×253.1 mm (H×V) |
Outline Dimension : | 462.8×272 mm (H×V) |
Outline Depth : | 10.2 (Typ.) mm |
Holes & Brackets : | Side mounting holes (4-M3) on left & right side |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
LB050S01-RD02 | LG Display | 5.0" | 800×600 |
LB050S01-RD01 | LG Display | 5.0" | 800×600 |
LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Display Mode : | TN, Normally White, Transmissive |
---|---|
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (6-bit + Hi-FRC) |
Color Gamut : | 72% NTSC (CIE1931) |
Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
Viewing Angle : | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.33 (Max.)(9 points) |
Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

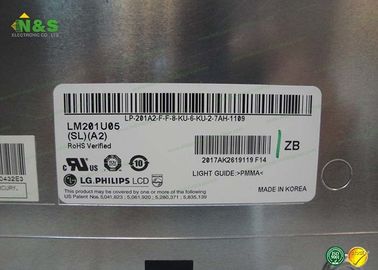

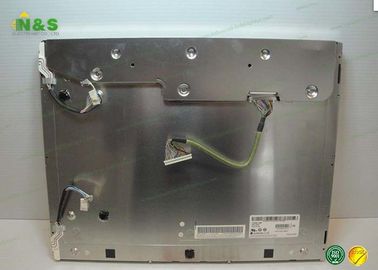

LM201U05-SLA2 Picture
