Product Details:
|
| Panel Size :: | 10.4 Inch | Resolution :: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Outline :: | 265×188.8×11.8 Mm | Viewing Angle :: | 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

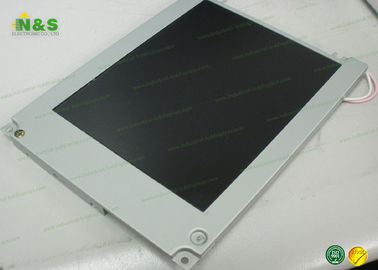

10.4 inch LTA104A261F TOSHIBA with 211.2×158.4 mm Active Area for Industrial Application panel
LTA104A261F Specification
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 610g (Typ.) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 216.2×163.4 mm (H×V) |
| Outline Dimension : | 265×188.8 mm (H×V) |
| Outline Depth : | 11.4±0.4 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA104A261F Specification
| Lamp Position : | Edge light type (Top and Bottom) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Typ.) (Hours) | |||||
| Lamp Voltage : | 480V (Typ.) | |||||
| Lamp Current : | 3.0/6.5mA (Min./Max.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Lamp Driver Board : | No | |||||
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
| LTH15C503-A | TOSHIBA | 15.0" | 1024×768 |
| LTM024D161 | TOSHIBA | 2.4" | 240×320 |
| LTM030DH60 | TOSHIBA | 3.0" | 240×427 |
| LTD154LZ1SG (Z) | TOSHIBA | 15.4" | 1920×1200 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LTA104A261F Specification
| Signal Category : | TTL | |||||
|---|---|---|---|---|---|---|
| Signal Class : | CMOS (1 ch, 6-bit) | |||||
| Input Voltage for Panel : | 5.0V (Typ.)(VDD) | |||||
| Input Current for Panel : | 150mA (Typ.)(IDD) | |||||
| Voltage for Display Signals : | 0≤VIL≤1.5V; 3.5V≤VIH≤VDD | |||||
| Interface Type : | Connector | |||||
| Signal Interface : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9B-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-060A | |
