Product Details:
|
| Panel Size :: | 9.0 Inch | Display Mode :: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area :: | 196.8×118.08 Mm | Brightness :: | 500 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

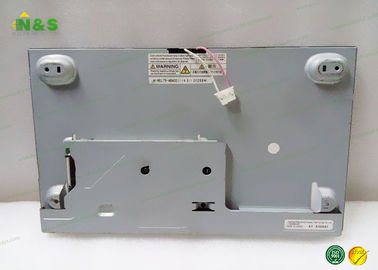

Normally White LTA090B400F TOSHIBA 9.0 inch Normally White with 196.8×118.08 mm Active Area
LTA090B400F Specification
| Panel Size : | 9.0 inch |
|---|---|
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 103 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.082×0.246 mm (H×V) |
| Pixel Pitch : | 0.246×0.246 mm (H×V) |
| Weight : | 420g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 196.8×118.08 mm (H×V) |
| Bezel Area : | 199.8×121.1 mm (H×V) |
| Outline Dimension : | 216.5×135 mm (H×V) |
| Outline Depth : | 14.5±0.3 mm |
| Holes & Brackets : | Rear mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA090B400F Specification
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 36/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.300; Wy:0.310 |
| Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT141DEVEP00 | TOSHIBA | 14.1" | 1280×800 |
| LT121DEVCN00 | TOSHIBA | 12.1" | 1280×800 |
| LTM024DB40 | TOSHIBA | 2.4" | 240×320 |
| LTM022A97B | TOSHIBA | 2.2" | 240×320 |
| LT043MDQ6000 | TOSHIBA | 4.3" | 480×272 |
| TFD58W30MM | TOSHIBA | 5.8" | 400×234 |
| LT111EE06000 | TOSHIBA | 11.1" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTA090B400F Specification
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | U shape | |||||
| Lamp Voltage : | 1000V (Typ.) | |||||
| Lamp Current : | 6.5mA (Typ.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
