LG Hard coating LM190WX2-TLK1 LCD Pane 19.0 inch with 408.24×255.15 mm Active Area

LG  Hard coating  LM190WX2-TLK1 LCD Pane  	19.0 inch with  	408.24×255.15 mm Active Area
LG  Hard coating  LM190WX2-TLK1 LCD Pane  	19.0 inch with  	408.24×255.15 mm Active Area LG  Hard coating  LM190WX2-TLK1 LCD Pane  	19.0 inch with  	408.24×255.15 mm Active Area

Large Image :  LG Hard coating LM190WX2-TLK1 LCD Pane 19.0 inch with 408.24×255.15 mm Active Area

Product Details:
Place of Origin: KOREA
Brand Name: LG
Certification: ISO9001
Model Number: LM190WX2-TLK1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

LG Hard coating LM190WX2-TLK1 LCD Pane 19.0 inch with 408.24×255.15 mm Active Area

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 19.0 Inch
Resolution: 1440(RGB)×900 , WXGA+ Display Mode: TN, Normally White, Transflective
Active Area: 408.24×255.15 Mm Outline: 408.24×255.15 Mm
High Light:

lg display panel

,

lg lcd display

LG Hard coating LM190WX2-TLK1 LCD Pane 19.0 inch with 408.24×255.15 mm Active Area



Panel Size : 19.0 inch
Dot Resolution : 1440(RGB)×900 (WXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 89 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0945×0.2835 mm (H×V)
Pixel Pitch : 0.2835×0.2835 mm (H×V)
Weight : 1.40/1.47Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 408.24×255.15 mm (H×V)
Bezel Area : 412.2×259.0 mm (H×V)
Outline Dimension : 428×278 mm (H×V)
Outline Depth : 8.6/10.7 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.



Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle : 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
Sunlight Readable : N



Our Services

1. Quick and accurate reply with best service attidue to our business

2. Pofessional advise

3. Quick PI confirmation

4. Close production follow up and production process feedback

5. Safe package

6. Get feekback from your side when items arrived,

7. 24 months warranty for items



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LG 1.3 Circular P-OLED LG Display 1.3" 320×320
LH300WQ1-ED01 LG Display 3.0" 240×400
LB050S01-RD02 LG Display 5.0" 800×600
LB050S01-RD01 LG Display 5.0" 800×600
LC430DUY-SHA3 LG Display 43" 1920×1080
LD490EPY-SHP1 LG Display 49" 1920×1080
LD550DPY-SHP1 LG Display 55" 1920×1080
LC490EGY-SHM3 LG Display 49" 3840×2160

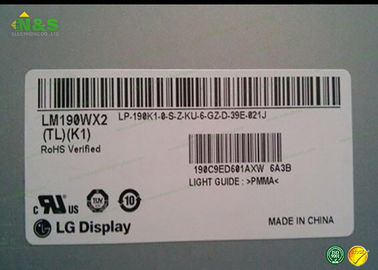

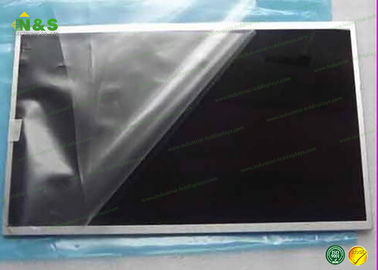

LM190WX2-TLK1 Picture



LG  Hard coating  LM190WX2-TLK1 LCD Pane  	19.0 inch with  	408.24×255.15 mm Active Area 0
