Product Details:
|
| Panel Brand :: | Toshiba Matsushita | Panel Type :: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Panel Size :: | 9.0 Inch | Resolution :: | 480(RGB)×234 |
| High Light: | industrial touch screen display,industrial lcd screen |
||

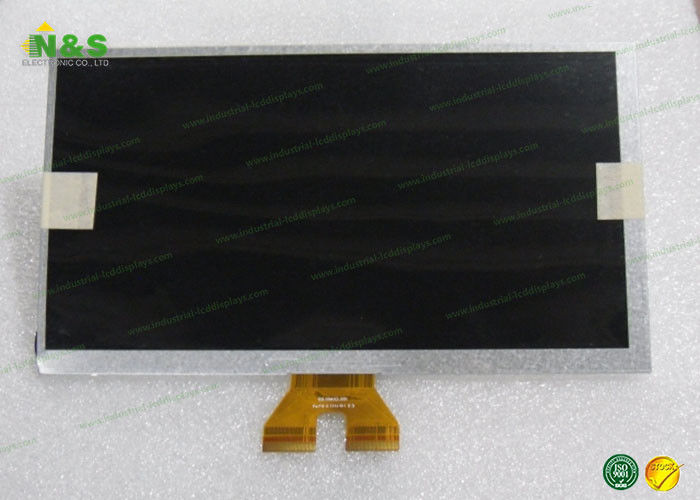

Normally White 9.0 inch LTA090A149A TOSHIBA for Industrial Application panel
LTA090A149A Specification
| Panel Size : | 9.0 inch |
|---|---|
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 59 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1375×0.4775 mm (H×V) |
| Pixel Pitch : | 0.4125×0.4775 mm (H×V) |
| Weight : | 247g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 198×111.735 mm (H×V) |
| Bezel Area : | 203.5×117.2 mm (H×V) |
| Outline Dimension : | 215×126.4 mm (H×V) |
| Outline Depth : | 6.95/7.2 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA090A149A Specification
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | L shape | |||||
| Lamp Life Time : | 10K(Min.) (Hours) | |||||
| Lamp Voltage : | 480V (Typ.) | |||||
| Lamp Current : | 3.0/6.5/7.0mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 30/40/80KHz (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1300V (Min.)(Ta=-20℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Lamp Driver Board : | No | |||||
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTA070B0C1A | TOSHIBA | 7.0" | 480×234 |
| LTA070B070F | TOSHIBA | 7.0" | 800×480 |
| LTA070A251A | TOSHIBA | 7.0" | 480×234 |
| LTA040B470A | TOSHIBA | 4.0" | 480×234 |
| LT104AD18F00 | TOSHIBA | 10.4" | 800×600 |
| TFD60W12 | TOSHIBA | 6.0" | 320×234 |
| LTA149D680F | TOSHIBA | 14.9" | 1280×390 |
| LTA065B615A | TOSHIBA | 6.5" | 400×234 |
