Product Details:
|
| Panel Size: | 15.0 Inch | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 8-bit) , 20 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||
Our Company Strength in LCD Screen Sourcing:
| Panel Size : | 15.0 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 85 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.099×0.297 mm (H×V) | |
| Pixel Pitch : | 0.297×0.297 mm (H×V) | |
| Weight : | 1.16Kgs (Typ.) | |
| Surface : |
|
|
| Active Area : | 304.1×228.1 mm (H×V) | |
| Bezel Area : | 307.4×231.3 mm (H×V) | |
| Outline Dimension : | 326.5×253.5 mm (H×V) | |
| Outline Depth : | 12.0 (Typ.) mm | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
| Display Mode : |
|
|
| Brightness : | 450 cd/m² (Typ.) | |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (6-bit + Hi-FRC) | |
| Color Gamut : | 63% NTSC (CIE1931) | |
| Response Time : | 2/6 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33 (Max.)(9 points) | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAD015GA01 CXA | CPT | 1.5" | 480×240 |
| CLAN101FP05 XG | CPT | 10.1" | 1920×1200 |
| CLAG101WH11 LXA | CPT | 10.1" | 1280×800 |
| CLAF055WB42 TXX | CPT | 5.5" | 720×1280 |
| CLAN089WA02 XN | CPT | 8.9" | 800×1280 |
| CLAF050WH41 | CPT | 5.0" | 720×1280 |
| CLAN070NJ01 CW | CPT | 7.0" | 1024×600 |
| CLAG070NQ01 | CPT | 7.0" | 1024×600 |
| CLAF050WG41 TXX | CPT | 5.0" | 720×1280 |
| CLAF050LN41 TXX | CPT | 5.0" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

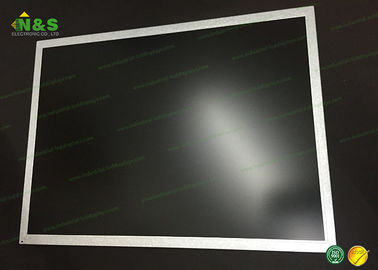

CLAA150XM05 Picture
