Product Details:
|
| Panel Size: | 7.0 Inch | Resolution: | 1024(RGB)×600 , WSVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 40 Pins |
| High Light: | lcd display panel,innolux lcd screen |
||
| Panel Size : | 7.0 inch | |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 169 PPI | |
| Aspect Ratio : | 17:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.050×0.150 mm (H×V) | |
| Pixel Pitch : | 0.150×0.150 mm (H×V) | |
| Weight : |
| |
| Surface : | Glare (Haze 0%) | |
| Active Area : | 153.6×90 mm (H×V) | |
| Bezel Area : | 156.4×92.8 mm (H×V) | |
| Outline Dimension : | 165.75×105.39 mm (H×V) | |
| Outline Depth : | 4.80±0.3 mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
|
| ||
| Brightness : | 500 cd/m² (Typ.) | ||
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | ||
| Color Gamut : | 70% NTSC (CIE1931) | ||
| Response Time : | 10/15 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | 6 o'clock | ||
| White color Chromaticity : |
| ||
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AE060RN01 | Innolux | 6.0" | 800×600 |
| F050A12-601 | Innolux | 5.0" | 480×854 |
| 85C02502-Y21 | Innolux | 2.5" | 320×240 |
| V260B2-P03 Rev.C2 | Innolux | 26.0" | 1366×768 |
| G070YG1-P01 | Innolux | 7.0" | 800×480 |
| F03215-01Z | Innolux | 3.2" | 360×480 |

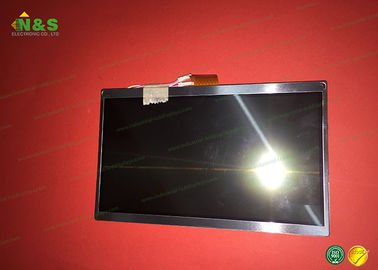

ZJ070NA-01P Picture
