Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Contrast Ratio: | 900:1 (Typ.) | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
| 12.1 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 105 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.080×0.240 mm (H×V) | |
| Pixel Pitch : | 0.240×0.240 mm (H×V) | |
| Weight : |
| |
| Surface : | Clear, Hard coating (3H) | |
| Active Area : | 245.76×184.32 mm (H×V) | |
| Bezel Area : | 249.0×187.5 mm (H×V) | |
| Outline Dimension : | 260.5×203 mm (H×V) | |
| Outline Depth : | 8.7±0.5 mm | |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Display Mode : |
| |
| Brightness : | 1000 cd/m² (Typ.) | |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.7M (6-bit / 8-bit) | |
| Color Gamut : | 40% NTSC (CIE1931) | |
| Response Time : | 3/15 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : | Wx:0.313; Wy:0.329 | |
| White Variation : |
| |
| Sunlight Readable : | Y |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

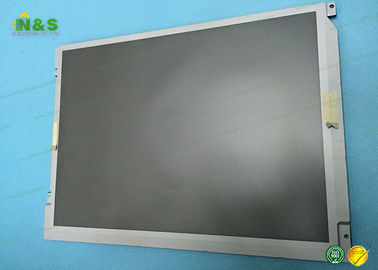

NL10276BC24-21F Picture
