Product Details:
|
| Product Number: | G084SN05 V9 | Brand: | AUO |
|---|---|---|---|
| Size Of Panel: | 8.4“” | Resolution: | 800×600 |
| Brightness: | 450cd/m² | C/R: | 600:1 |
| High Light: | auo display panel,auo lcd screen |
||

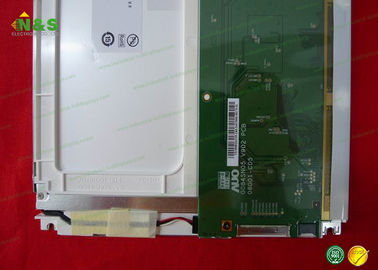

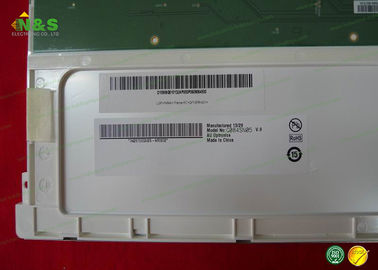

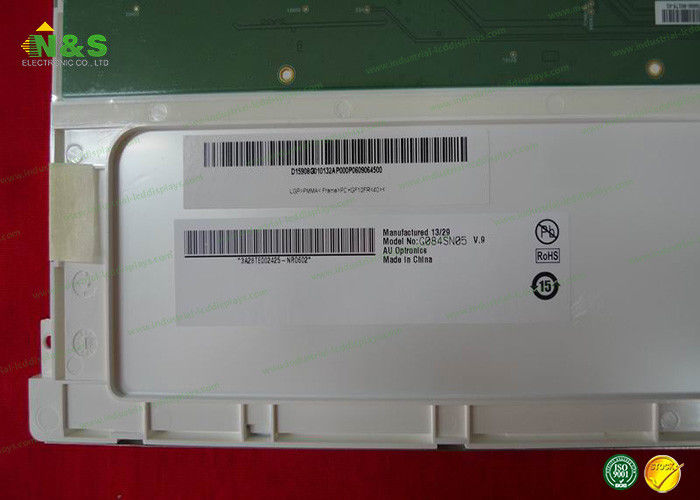

G084SN05 V9 8.4" TFT LCD Screen Display Panel 800*600 WLED
Panel Brand : AUO
Panel Model : G084SN05 V9
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 8.4 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 170.4×127.8 mm
Outline : 203×142.5×8 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 45%
Response Time : 20/10 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
AUO G084SN05 V9 Mechanical Features
Panel Size : 8.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 119 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.071×0.213 mm (H×V)
Pixel Pitch : 0.213×0.213 mm (H×V)
Weight : 250g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 170.4×127.8 mm (H×V)
Bezel Area : 174.15×131.2 mm (H×V)
Outline Dimension : 203×142.5 mm (H×V)
Outline Depth : 8.0 (Max.) mm
Holes & Brackets : Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
