Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 442.8×249.075 Mm | Outline: | 462.8×272×11 Mm |
| Surface: | Antiglare (Haze 25%), Hard Coating (3H) | Brightness: | 200 Cd/m² (Typ.) |
| Contrast Ratio: | 700:1 (Typ.) | Response Time: | 1.5/3.5 (Typ.)(Tr/Td) |
| High Light: | lcd display panel,innolux lcd screen |
||
20.0 inch M200FGE-L23 Innolux LCD Panel with 442.8×249.075 mm Active Area for Desktop Monitor
M200FGE-L23 Innolux LCD Panel Detail
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M200FGE-L23 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.0 inch |
| Resolution : | 1600(RGB)×900 , HD+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 442.8×249.075 mm |
| Outline : | 462.8×272×11 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 20.0 inch |
| Dot Resolution : | 1600(RGB)×900 (HD+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Weight : | 1.605/1.765Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 442.8×249.075 mm (H×V) |
| Bezel Area : | 446.8×253.2 mm (H×V) |
| Outline Dimension : | 462.8×272 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on up and down side |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

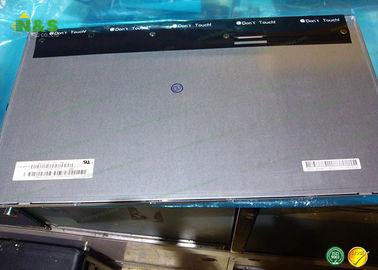

M200FGE-L23 Innolux LCD Panel Picture
