Product Details:
|
| Product Number: | NL8060BC31-42E | Brand: | NEC |
|---|---|---|---|
| Size Of Panel: | 12.1" | Resolution: | 800×600 |
| Brightness: | 530 | ||
| High Light: | nec lcd touch screen,nec tft lcd |
||

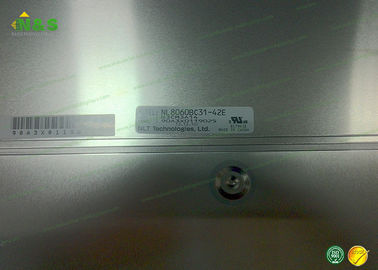

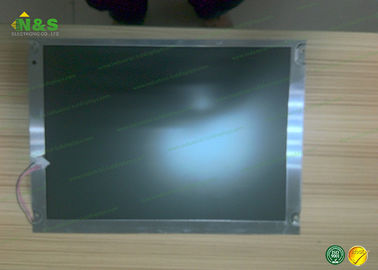

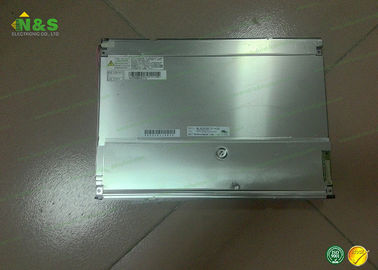

12.1 inch NL8060BC31-42E LCD Display Panel for Industrial Application by NEC
| Panel Brand : | NEC |
|---|---|
| Panel Model : | NL8060BC31-42E |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 280×210 mm |
| Surface : | Antiglare |
| Brightness : | 530 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 41 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
We Can Do for You
1) One-to-one service with efficient support;
2) Protection of your design and all your private information;
3) We could supply unique items;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 5 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
