Product Details:
|
| Panel Brand :: | Toshiba Matsushita | Panel Type :: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Resolution :: | 640(RGB)×480 , VGA | Active Area :: | 132.48×99.36 Mm |
| Outline :: | 153×118 Mm | Brightness :: | 250 Cd/m² (Typ.) |
| Contrast Ratio :: | 350:1 (Typ.) | Viewing Angle :: | 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

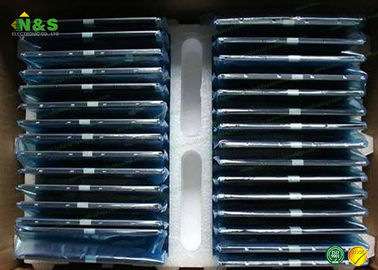

Normally White LTA065B0E0F TOSHIBA 6.5 inch with 640×480 250 350:1 262K CCFL TTL
LTA065B0E0F DETAIL
| Panel Size : | 6.5 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Weight : | 250g (Typ.) |
| Active Area : | 132.48×99.36 mm (H×V) |
| Bezel Area : | 138.34×105.58 mm (H×V) |
| Outline Dimension : | 153×118 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2); Rear mounting holes (4-M2.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA065B0E0F DETAIL
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 30K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 315V (Typ.) | |||||
| Lamp Current : | 4.0/6.0/6.5mA (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1000V (Min.)(Ta=-10℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03(4-3)VS-1N | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HHL | |
| Lamp Driver Board : | No | |||||
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTM04C387S | TOSHIBA | 4.0" | 640×480 |
| LTM04C380S | TOSHIBA | 4.0" | 640×480 |
| LTM026DF6 | TOSHIBA | 2.6" | 240×400 |
| LTM025D88 | TOSHIBA | 2.5" | 240×345 |
| LTM024D030* | TOSHIBA | 2.4" | 240×320 |
| LTA070B0C1A | TOSHIBA | 7.0" | 480×234 |
| LTA070B070F | TOSHIBA | 7.0" | 800×480 |
| LTA070A251A | TOSHIBA | 7.0" | 480×234 |
