Product Details:
|
| Panel Size: | 8.0 Inch | Resolution: | 1600(RGB)×768 |
|---|---|---|---|
| Contrast Ratio: | 400:1 (Typ.) | Signal Interface: | LVDS (1 Ch, 6-bit) , 30 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
Our Company Strength in LCD Screen Sourcing:
|
8.0 inch | |
| Dot Resolution : | 1600(RGB)×768 | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 222 PPI | |
| Aspect Ratio : | 2:1 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.038×0.114 mm (H×V) | |
| Pixel Pitch : | 0.114×0.114 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare (Haze 42%), Hard coating (3H) | |
| Active Area : | 182.4×87.552 mm (H×V) | |
| Outline Dimension : | 195.3×111.5 mm (H×V) | |
| Outline Depth : | 2.42/3.38 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 340 cd/m² (Typ.) | |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 45% NTSC (CIE1931) | |
| Response Time : | 16 (Typ.)(Tr+Td) | |
| Viewing Angle : | 35/35/10/30 (Min.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.25/1.54 (Max.)(5/13 points) | |
| Transmissivity : | 4.4% (Typ.)(with Polarizer) | |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| CLAN070NQ06 | CPT | 7.0" | 1024×600 |
| CLAG050LD01 | CPT | 5.0" | 480×854 |
| CLAN060LB41 2XC | CPT | 6.0" | 540×960 |
| CLAD015GA01 CXA | CPT | 1.5" | 480×240 |
| CLAN101FP05 XG | CPT | 10.1" | 1920×1200 |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.

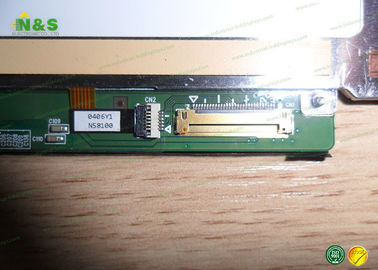

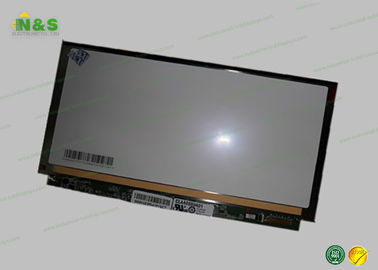

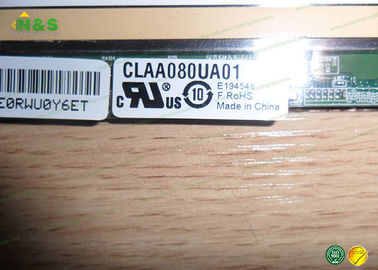

CLAA080UA01 Picture
Contact Person: savvy,ren
Tel: +8613302928193
