Product Details:
|
Panel Size: | 7.0 Inch | Resolution: | 1024(RGB)×600 , WSVGA |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Contrast Ratio: | 500:1 (Typ.) |
Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 40 Pins |
High Light: | tft lcd display,innolux lcd screen |
| 7.0 inch | |
Dot Resolution : | 1024(RGB)×600 (WSVGA) | |
Pixel Configuration : | RGB Vertical Stripe | |
Pixel Density : | 169 PPI | |
Aspect Ratio : | 17:10 (H:V) | |
Form Factor : | Flat Rectangle Display | |
Dot Pitch : | 0.050×0.150 mm (H×V) | |
Pixel Pitch : | 0.150×0.150 mm (H×V) | |
Weight : | TBD | |
Active Area : | 153.6×90 mm (H×V) | |
Bezel Area : | 156.4×92.8 mm (H×V) | |
Outline Dimension : | 165.75×105.39 mm (H×V) | |
Outline Depth : | 2.45±0.2 mm | |
Holes & Brackets : | Without | |
Landscape or Portrait : | Landscape type | |
Touch Panel : | Without |
Display Mode : |
| |
Brightness : | 300 cd/m² (Typ.) | |
Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | |
Color Gamut : | 70% NTSC (CIE1931) | |
Response Time : | 10/15 (Typ.)(Tr/Td) | |
Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | |
White color Chromaticity : |
| |
White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
Sunlight Readable : | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
V156B2-P02 | Innolux | 15.6" | 1366×768 |
N154I2-P05 | Innolux | 15.4" | 1280×800 |
C03024-01Z | Innolux | 3.0" | 960×480(dot) |
G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
F04307-06Z | Innolux | 4.3" | 480×800 |
CG043JN16 | Innolux | 4.3" | 480×800 |
F04008-01U | Innolux | 4.0" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

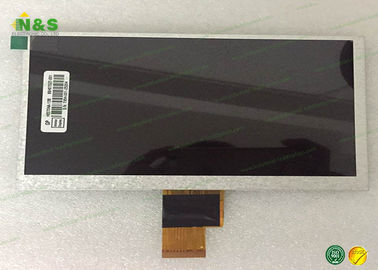

HJ070NA-13B Picture
