Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 , WXGA | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Products Information:
| Panel Size : | 12.1 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 124 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.068×0.204 mm (H×V) | |
| Pixel Pitch : | 0.204×0.204 mm (H×V) | |
| Weight : |
|
|
| Surface : | Hard coating (2H) | |
| Active Area : | 261.12×163.2 mm (H×V) | |
| Bezel Area : | 265.1×167.2 mm (H×V) | |
| Outline Dimension : | 276.8×180 mm (H×V) | |
| Outline Depth : | 4.3/6.8 (Typ./Max.) mm | |
| Holes & Brackets : | Side mounting holes (9-M2) on left, right & up bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 30% NTSC (CIE1931) | |
| Response Time : | 30 (Typ.)(Tr+Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.25/1.67 (Max.)(5/13 points) | |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HTT22QC2-S01 | HYDIS | 2.2" | 176×220 |
| HV121X02-101 | HYDIS | 12.1" | 1024×768 |
| HX104X03-101 | HYDIS | 10.4" | 1024×768 |
| HVT35HV1-DE0 | HYDIS | 3.5" | 320×480 |
| HVA40WV2-D02 | HYDIS | 4.0" | 480×800 |
| HVA35WV1-D03 | HYDIS | 3.5" | 480×800 |
| HVA35WV1-D02 | HYDIS | 3.5" | 480×800 |
| HV070WS1-D01 | HYDIS | 7.0" | 1024×600 |
| HX104X02-101 | HYDIS | 10.4" | 1024×768 |
| HVT31HV1-D00 | HYDIS | 3.1" | 320×480 |
| HVA43WV1-D01 | HYDIS | 4.3" | 480×800 |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

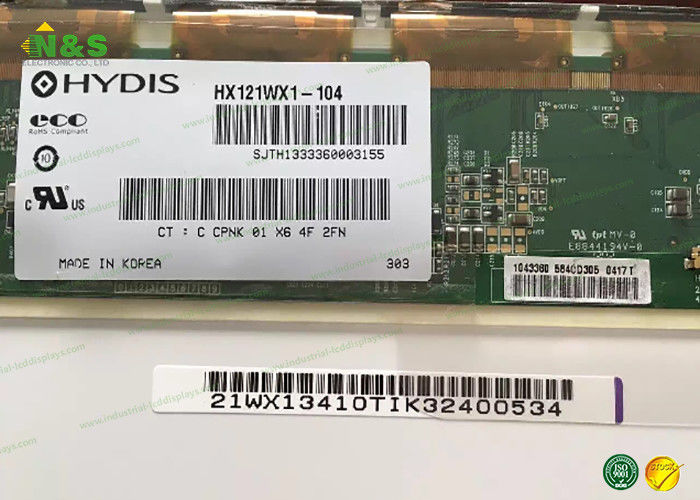

HX121WX1-104 Picture
