Product Details:
|
| Panel Brand :: | Toshiba Matsushita | Panel Model :: | LTA057A341F |
|---|---|---|---|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 5.7 Inch |
| High Light: | industrial lcd screen,industrial lcd panel |
||

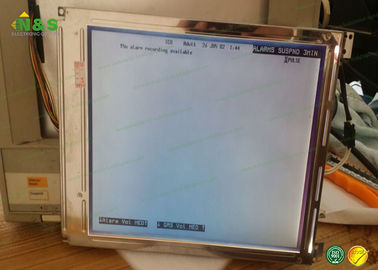

5.7 inch LTA057A341F TOSHIBA with 115.2×86.4 mm Active Area Normally White
LTA057A341F Information
| Panel Size : | 5.7 inch |
|---|---|
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 125g (Typ.) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.0×90.2 mm (H×V) |
| Outline Dimension : | 144×104.6 mm (H×V) |
| Outline Depth : | 8.3 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-Φ1.6); Rear mounting Pole (4-Φ2.6); Face mounting holes (2 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA057A341F Information
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
LTA057A341F Information
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 6S3P | |||||
| Lamp Shape : | 3 strings | |||||
| Lamp Life Time : | 20K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 19.2V (Typ.) | |||||
| Lamp Current : | 15/25mA (Typ./Max.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM06B-SHLS-TF(LF)(SN) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CACACA | |
| Lamp Driver Board : | No | |||||
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTM026DF6 | TOSHIBA | 2.6" | 240×400 |
| LTM025D88 | TOSHIBA | 2.5" | 240×345 |
| LTM024D030* | TOSHIBA | 2.4" | 240×320 |
| LTA070B0C1A | TOSHIBA | 7.0" | 480×234 |
| LTA070B070F | TOSHIBA | 7.0" | 800×480 |
| LTA070A251A | TOSHIBA | 7.0" | 480×234 |
| LTA040B470A | TOSHIBA | 4.0" | 480×234 |
| LT104AD18F00 | TOSHIBA | 10.4" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
