Product Details:
|
| Panel Brand :: | Toshiba Matsushita | Panel Model :: | LT133EE09300 |
|---|---|---|---|
| Panel Type :: | LTPS TFT-LCD , LCM | Panel Size :: | 13.3 Inch |
| High Light: | industrial lcd screen,industrial lcd panel |
||

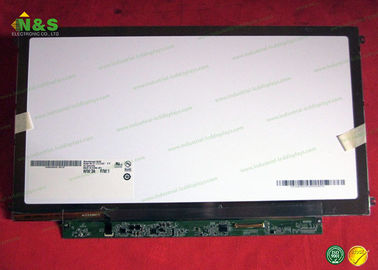

Normally White LT133EE09300 TOSHIBA 13.3 inch for Laptop panel
LT133EE09300 Specification
| Panel Size : | 13.3 inch |
|---|---|
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 118 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0716×0.2148 mm (H×V) |
| Pixel Pitch : | 0.2148×0.2148 mm (H×V) |
| Weight : | 280g (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating |
| Active Area : | 293.42×164.97 mm (H×V) |
| Outline Dimension : | 317.2×188.75 mm (H×V) |
| Outline Depth : | 3.6 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTM06C381 | TOSHIBA | 5.8" | 800×480 |
| LTM04C387S | TOSHIBA | 4.0" | 640×480 |
| LTM04C380S | TOSHIBA | 4.0" | 640×480 |
| LTM026DF6 | TOSHIBA | 2.6" | 240×400 |
| LTM025D88 | TOSHIBA | 2.5" | 240×345 |
| LTM024D030* | TOSHIBA | 2.4" | 240×320 |
| LTA070B0C1A | TOSHIBA | 7.0" | 480×234 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LT133EE09300 Specification
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Sunlight Readable : | N |
