Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 18.5 Inch |
---|---|---|---|
Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 409.8×230.4 Mm | Outline: | 430.4×254.6×11.4 Mm |
High Light: | tft lcd panel,tft lcd display module |

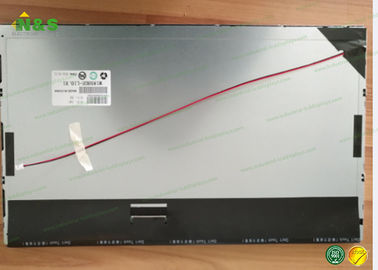

18.5 inch MT185WHM-N20 TFT LCD Module OE LCM 1366×768 for Desktop Monitor panel
MT185WHM-N20 DETAIL
Panel Size: | 18.5 |
---|---|
Dot Resolution : | 1366(RGB)×768 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 84 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.100×0.300 mm (H×V) |
Pixel Pitch : | 0.300×0.300 mm (H×V) |
Weight : | 1.31Kgs (Typ.) |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Active Area : | 409.8×230.4 mm (H×V) |
Bezel Area : | 413.4×234.0 mm (H×V) |
Outline Dimension : | 430.4×254.6 mm (H×V) |
Outline Depth : | 7.7/11.4 (Typ./Max.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
---|---|
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (6-bit + Hi-FRC) |
Color Gamut : | 72% NTSC (CIE1931) |
Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
Viewing Angle : | 85/85/80/80 (Typ.)(CR>10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Sunlight Readable : | N |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Packing & Delivery for our LCD Screen Panel Replacements:
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
HR270QH3-100 | BOE | 27.0" | 2560×1440 |
BF045WVQ-401 | BOE | 4.5" | 480×854 |
BV055HDE-N40 | BOE | 5.5" | 720×1280 |
TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
AV080WVB-NW2 | BOE | 8.0" | 800×480 |
BV050HDE-N47 | BOE | 5.0" | 720×1280 |
